Hitema - Model SBS-MC Series -Modular Chiller with Microchannel Condenser Coil

SHARE

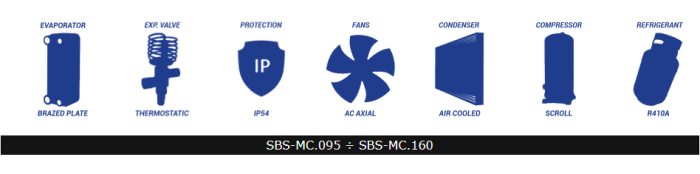

Standard Configuration: Compressors: Scroll. Condenser: Air-Cooled, aluminum microchannel condenser coils. Evaporator: Brazed plate (SBS.095÷SBS.160). Expansion Valve: Thermostatic (SBS.095÷SBS.160) Electronic available. Fans: AC axial or EC fans available. Protection Rating: IP54. Refrigerant: R410A, R454B; R32. Cooling Capacity Range 95kW ÷ 180kW.

Most popular related searches
condenser coil
refrigerant charge
air cooled condenser
scroll chiller
axial fan
thermostatic valve
evaporative condenser
  • MODULARITY to increase the nominal capacity of the whole unit, based on well-designed models that can be hydraulically combined to obtain the project requirements
  • PCO5+ CONTROL with master-slave functions in the multi-modules installation
  • Microchannel condenser coils to minimize the refrigerant charge
  • AC axial with Electronic fan speed control (cut-phase): EC fans on request
  • Low refrigerant charge per circuit less than 10 kg
