Hitema - Model SBSF Series - Free-Cooling Liquid Chillers With Axial Fans

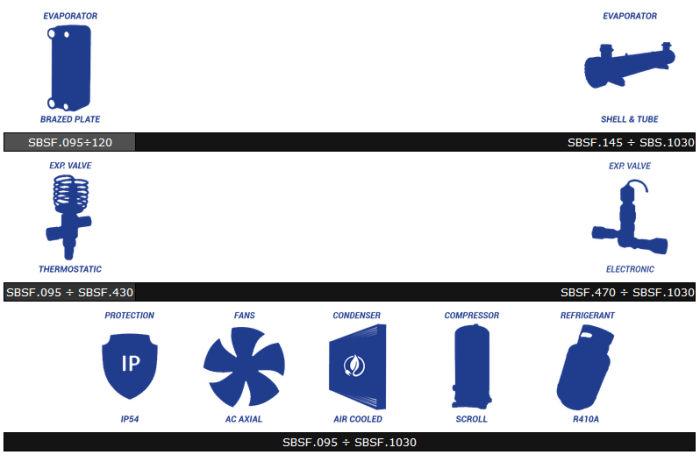

Standard Configuration: Compressors: Scroll. Condenser: Air-Cooled with integrated Free-Cooling coil, with copper tubes and aluminium finned core. Evaporator: Brazed plate (SBSF.095÷SBSF.120) or Shell & Tube (SBSF.145÷SBSF.1030). Expansion Valve: Thermostatic (SBSF.095÷SBSF.430) or Electronic (SBSF.470÷SBSF.1030). Fans: AC axial. Protection Rating: IP54. Refrigerant: R410A (R454B and R32 available as option).
- Modular construction of the condensers: extreme design flexibility
- Multiple compressor design: extreme reliability with great control capacity
- Integrated hydraulic module with tank as an optional (inverter pumps on request)
- AC axial with Electronic fan speed control (cut-phase): EC fans on request
- Free-cooling design is possible
- Different control capabilities on the basis of specific application
