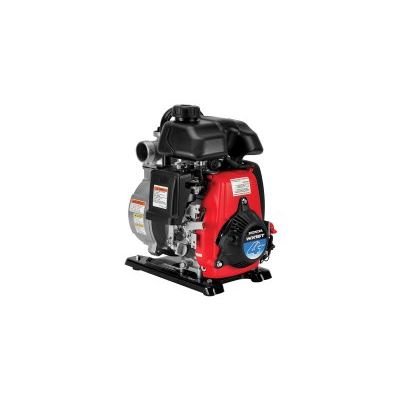

Honda - Model WX15 -Pump
Lightweight general purpose 1.5" pump. Easy starting Honda mini 4-stroke engine. Weighs only 20 lbs. 74 gal./min capacity. Hose clamps and strainer included.
Most popular related searches
Perfect for homeowners, gardeners, boat owners, and more
The WX15 is lightweight, compact, and easy to use.
Easy starting Honda mini 4-stroke commercial engine
The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
Lightweight aluminum pump
At only 20 lbs., the WX15 is easily portable.
Hose clamps and strainer included
Standard transport handle
The WX15 is easy to carry wherever you need it.
74 gal./min capacity
Protected by Honda Oil Alert
Protects the pump by shutting the engine off when low oil is detected.
- Engine GXH50
- Displacement 49cc
- Bore and stroke 1.65" x 1.42"
- Compression Ratio 8.0:1
- Oil Alert Std
- Pump type General purpose Centrifugal Self-priming
- Volute Aluminum
- Impeller Aluminum
- Mechanical Seal (Pump case / impeller) Carbon/Ceramic
- Priming time 120 sec. at 16.4 ft.
- Drive system Direct
- Discharge capacity 74 gal/min
- Suction port diameter 1.5" NPT
- Discharge port diameter 1.5" NPT
- Total head lift 121 ft.
- Suction head lift 26 ft.
- Maximum pressure 52 psi
- Solids handling N/A
- Dimensions (LxWxH) 14.0"x10.8"x14.8"
- Dry weight 20 lb.
- Fuel Capacity 0.20 gal
- Run Time @ Max Discharge 0.9 hr
- Strainer Part # 78325-YB0-751
- Residential Warranty 2 years
- Commercial Warranty 1 year
