Potential - Honeycomb Screen

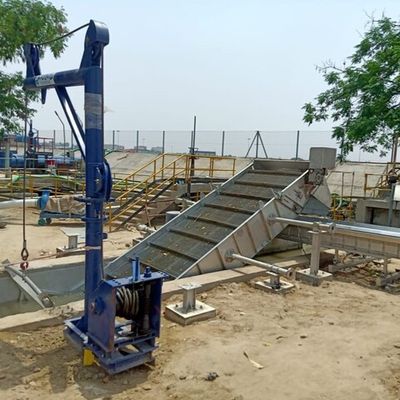

Honeycomb screens are widely deployed at the entrance of the hydraulic structure, water intake, and pumping stations to trap flowing Debris that could instigate downstream trouble. The flat wire belt finds application in industrial, municipal, and process water screening. The inclined honeycomb belt rotates at a constant speed, arresting Debris; it works with the help of a motor and gearbox. The Debris on the Honeycomb screen is scraped using water jet spray and brush. The unique feature of the screen is that it is pivot-mounted and can be turned to a horizontal position for maintenance. The screens can be equipped with an overload protection device and a conveyor.
Potential engineering, the leading honeycomb belt manufacturers offer honeycomb screens that use a metallic honeycomb conveyor belt to arrest flowing debris. It is rotated with a motor, gearbox, shaft, and sprocket. The debris is scraped off using water jet spray and brush. The screen is primarily used to arrest flowing debris of 20 mm and above. These screens can be provided with an overload protector, conveyor, and trash bin if required.
- Honeycomb size: 20 mm and above
- Channel Width: Up to 2 m
- Channel Depth: Up to 6 m
- Operation: Motorized
- MOC of Screen: SS or Other material, on required
- MOC of Conveyor: SS/ Neoprene or other material on request
- Customized design
- Easy to install
- Low maintenance
- Safe operation in hazardous areas
- Oily water treatment
- SBR Plants
- MBR plants
- Pre-treatment solutions
- Chemical Spills
- Floating Trash Removal
- Oil & Gas
- Water & wastewater
- Power
- Steel
- Municipal
- Mining
- Dairy
- Sugar
- Pharmaceuticals
- Food & beverages
- Chemicals
- Automobiles
- Miscellaneous (Wood, textiles, glass, paper, etc)
