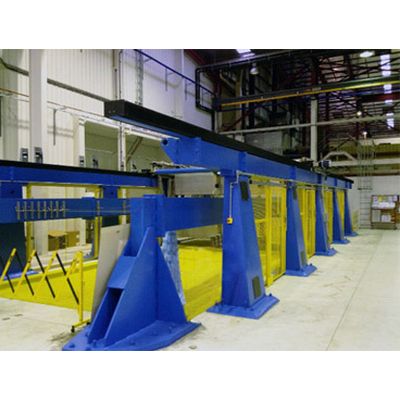

Matec - Horizontal and Vertical Gantries for Ultrasonic Testing
Matec specializes in the design and construction of both horizontal and vertical gantries specifically engineered for ultrasonic testing. These gantries are designed to accommodate a wide range of demanding applications specific to ultrasonic testing, enabling high precision and adaptability to various testing requirements. Each system is tailored to meet the individual specifications of customers, ensuring optimal performance for distinct testing environments. With a focus on reliability, Matec's gantries are employed in industries that require accurate and detailed material analysis, leveraging advanced ultrasonic testing technologies. The company provides comprehensive solutions from design to construction, ensuring that the gantries seamlessly integrate with other systems, thereby enhancing the efficiency of the testing process.Most popular related searches
ultrasonic testing
data acquisition software
flaw detection
package water
material analysis
water storage
dynamic range (db)
channel screen
water filtration
water storage system
Matec designs and constructs horizontal and vertical gantries for a wide variety of demanding ultrasonic testing applications and tailored to meet the specific needs of our customers.
- Horizontal, vertical, or flat bed type
- Up to 32 axes of motion
- Scanning envelopes to SUIT your requirements
- Scanning speeds to 30 inches per second for flat geometries
- Gimbal and dual gimbal assemblies for true complex contour scanning
- Fully integrated mechanical and electrical systems
- Computer-controlled axes for seamless position control
- Packaged water storage, filtration, and delivery system with single or multi-squirter arrangements
- System dynamic ranges to 130 dB with logarithmic amplifiers
- Data acquisition software for real-time, multi-channel, on-screen A-Scan display, B-Scan and C-Scan collection and display
- Analysis software with automatic flaw detection and measurement, and annotation capability
- Optional turntable and part fixturing and support systems
