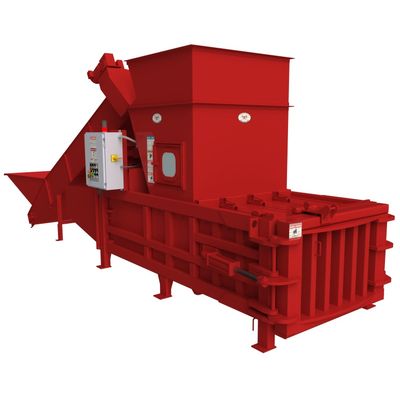

Cram-A-Lot - Model HE Series -Horizontal Baler
The Cram-A-Lot "HE Series” Horizontal Baler is designed with our largest clear top opening, almost 25% larger than our largest 72” Horizontal Baler and can be used with our without a conveyor system. Designed for ease of installation, operation and maintenance the baler can operate manually or automatically with photo electric cell control. The HE-60 is ideal for warehouses, users baling waste paper, corrugated, newsprint, office white, plastics, foam rubber, light aluminum and other recyclables without pre-conditioning or fluffing required.
- ANSI Z245.2 Compliant - All compactors meet or exceed ANSI Z245.2 safety standards.
- UL/CUL Listed Control Panels
- UHMW Ram Shoes - Adjustable to assure straight tracking and readily replaceable, should the need arise
- Oil Sight Gauge - Oil level at a glance
- Heavy Duty Controls - NEMA 4 rated pushbutton controls with key-lockable start switch
- Automatic Single Cycle Operation
The hydraulic power unit is the heart of any baler. While other manufacturers may source their power units right out of a parts house catalog, we have always designed and built our hydraulic power units in house, specifically for our application. Designing and building our own power unit is the only way we can guarantee the reliability and performance that our customers deserve.
HE SERIES BALER STEEL OPTIONS
- Left or Right Hand Hinged Chamber Door
- Tack-On Temporary Hopper
- 4 Sided Hopper, Flared to Rear with Access Door & Interlock
HE SERIES BALER ELECTRICAL & HYDRAULIC OPTIONS
- Remote Power Unit
- Remote Power Unit, with 30hp Upgrade
- Oil Cooler
- Oil Heater
- Biodegradable Oil
- Hydraulic Oil & ATF Blend – 50%
- Three Phase Voltage Options (208V, 230V, 460V, 575V)
HE SERIES BALER ELECTRICAL & HYDRAULIC OPTIONS
- 48” Wide Conveyor w/ Hopper, 18’ Length
- 48” Wide Pit Conveyor, 27’ Length
