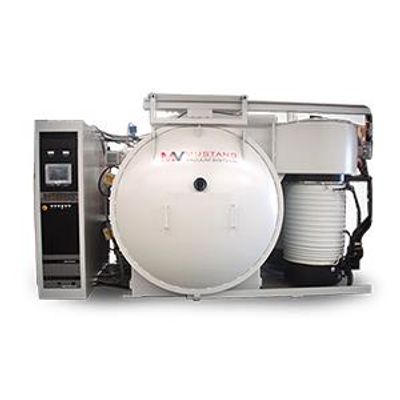

Mustang - Model HMS -Horizontal Batch Coating System
Horizontal batch coating system optimized for thermal resistance evaporation. Designed for coating low temperature plastics in a batch manufacturing environment Ideal for batch aluminum deposition for lighting reflectors, cosmetics and paint metal paint decorative finishes. Rotating multi-planetary fixture designs provide uniform coating for large batch size complex 3D substrates.
- Horizontal Batch Thermal Evaporation Metalizing System
- Chamber configurable up to 2 Meters in length
- Single door with removable tooling fixture cart
System Type
- Horiztontal Batch
- Single door with removable planetary tooling
Optimized Coating Area
- Three configurations with 6, 8 or 10 Planetaries
- Six (6) 558.8mm (22”) Planetaries or,
- Eight (8) 457.2mm (18”) Planetaries
- Ten (10) 406.4mm (16”)
Technical Summary
High power thermal resistive evaporation combined with in chamber heated monomer PECVD provides high brightness aluminum coatings for a wide range of plastics and metal substrates. Dual two-inch diameter copper buss bars on planetary assembly assures consistent voltage from front to back during evaporation process. Four stage evaporation sequence: Pre Soak, Soak, Pre Deposit and Deposit increases filament life and reduces scrap due to yellow or burnt parts.
Coating Method Options
- MF AC Plasma Pre Treatment
- Resistive Thermal Evaporation
- Up to forty (40) filaments on each planetary
- Single rope style filament system
- Continuous feed evaporation sources
- PECVD - MF AC Plasma
Typical System Dimensions
- Width - 6.5M (22’)
- Depth - 6.2M (21’)
- Height – 3.5M (11.5’)
