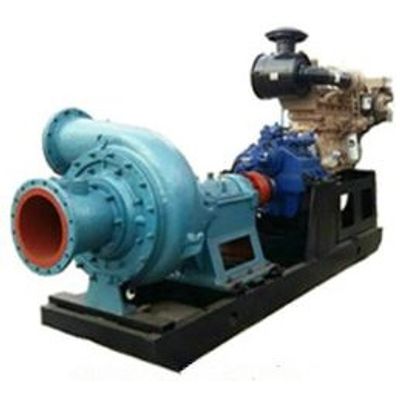

Everflowing - Model EPN Series -Horizontal Centrifugal Diesel Sand Suction Pump
EPN series horizontal sand pump can be used both on board and land ,It is designed in the reference of two phase flow theory. It has the following models: 250EPN-30, 250EPN-35, 250EPN-40, 350EPN-24, 350EPN-35, 350EPN-45 ,400EPN-22,and so on .learn more whatsapp:+8618605313873 www.sanddredger.comMost popular related searches
centrifuge
suction pump
dredge pump
booster pump
slurry pump
dredge
dredging
centrifugal pumping
centrifugal pump
centrifugal slurry pump
- Horizontal, centrifugal, one stage, centrifugal gravel and slurry pump.
- Made up of pump,bearing assembly,seal assembly,bracket and so on.
- Wear resistant wet parts which is made of hard metal (Chrome alloy).
- Long bearing life: The bearing assembly with large diameter shaft and short overhang.
- Mechanical seal, expeller seal and packing seal
- Pump discharge direction in any of 360 degree.easy installation
- Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, high efficiency
- high hydraulic efficiency
- good wear-resisting
- stable dredge performance
- Long distince discharge
- Motor or diesel engine can be equipped according to user needs.
- Dredge pump can either be installed onboard of the dredging vessels or onland.
- Discharge Size: 8~28inch
- Capacity: 400~10000m3/hr
- Head: 20-65 m
- Eff.: Max.76%
- Applicable onboard for dredging inland channel, exploiting seashore, and conveying the slurries with solid particles for coal mine enterprises, mine enterprises, power plants, etc.
- Used onland as dredger booster pump for conveying sand slurry in long distance.if one pump can not meet requirement of discharge distince,multiple pump can be used in series.
