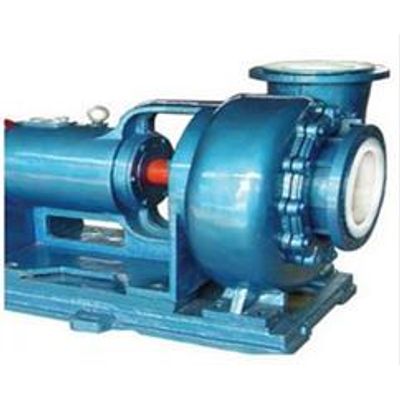

Tongda - Model 800TD-A90 -Horizontal Desulfurization Pump
Tongda pump company is one of the most professional pump manufacturer with more 20 years experience. TD series desulfurization pump is designed by tongda pump company. Its capacity is up to 12000m3/h, the head usually below 100m which cover all situation needed. It could be used for absorbent tower or as wate pump and pit pump etc.
Most popular related searches
flue gas desulfurization
desulfurization
fluid pump
suction pump
flexible coupling
flue gas
pumping pit
TDS
axial pump
Structure:
- TD series desulfurization pumps is single-stage,single-suction,single-casing axial-suction pumps upheld by support or hanging bracket.
- TD series desulfurization pump adopt flexible couplings.
Apply For:
- Value of PH: 2.5~13
- Concentration of chlorion: <60000ppm
- Weight density: <60%
- Temperature of medium: <120
Meaning of Serial No.
- For example: 800TD-A90(88)
- 800: outlet diameter (mm)
- TD: horizontal desulfurization pump
- 1:material of flowing parts (1 for C1,2 for C2,3 for C3)
- A: No. of impeller`s vanes (A for 5pcs,B for 4pcs,C for 3pcs,D for 2pcs,E for 1pc, F for 6pcs,G for 7pcs)
- 90: Diameter of impeller (cm)
- 88: Actual diameter after cutting
- B:unshrouded impeller (special structure code; no code for normal structure)
TD desulfurization pumps are specially designed for Flue Gas Desulfurization (FGD) industry, widely used as circulating pump for absorption tower ,limestone serous fluid transporting pump , plaster fluid transporting pump,etc.
