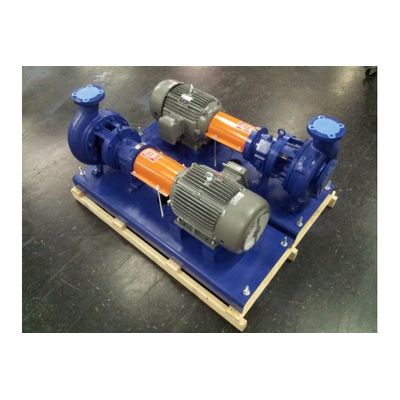

TRUFLO - Model DAP Series -Horizontal Overhung Centrifugal Process Pump – ANSI B73.1 (OH1)
TRUFLO`s DAP series of horizontal end suction centrifugal process pumps are built to ANSI B73.1M specifications to accomodate the very corrosive and erosive conditions of the chemical process industry. The DAP`s durability, easy maintenance, and excellent interchangeability make it a great solution for your process industry application.
Most popular related searches
centrifugal process pump
process pump
ANSI pump
semiconductor water
end suction centrifugal pump
centrifugal pumping
horizontal centrifugal pumping
horizontal centrifugal pump
centrifugal pump
pharmaceutical water
- Designed for the process industry (ANSI B73.1M)
- 22 Different Pump Sizes
- Low-Flow Models Available
- Max. Capacity: 4,840gpm (1,100 m³/h) @ 1750rpm
- Max. Head: 760ft (230m) @ 3500rpm
- Temperature to 350°F (180°C) with high temperature application option
- Fully open impeller investment casting
- Material: DCI, WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, and TI
- Standard Features: Large Bore Stuffing Box, Labrinth Bearing Isolator, Magnetic Oil Plug, Bulls-Eye Sight Glass, Large Bearing Oil Reservoir, Ductile Iron Pumps come with 316SS Trim, Balanced Impeller and more
- Back pull-out design for easy maintenance
- Excellent interchangeability
- ISO 9001 certified by LRQA in 1998
- Chemical Process Industry
- General Industry
- Refineries
- Textile Industry
- Food & Beverage Industry
- Pharmaceutical Industry
- Semiconductor Industry
- Water & Waste Treatmen
- Foundries
- Pulp & Paper Industry
- Steel & Mill Industry
- Wood Products
