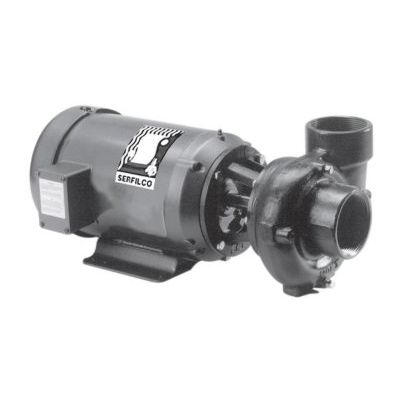

Serfilco - Model Series RC -Horizontal Pumps

Material: Cast iron
Performance: 50-400 gpm

• Flows to 420 gpm or 82 ft. TDH @ 60 Hz (1325 LPM or 17.4m @ 50 Hz)
• SS 316 shaft, cast iron mounting bracket
• Single or double mechanical seal Carbon/ceramic EPDM or FKM elastomers
• Centrifugal, quiet, vibration-free
• Motors are standard NEMA C face, TEFC

The Series `RC` horizontal pump is a compact close-coupled design. A high efficiency, semi-open cast iron impeller allows for less clogging and quick cleaning. The components are cast so there are no welds to break. In addition, the cast iron construction provides improved corrosion resistance over similar welded styles.

The Series `RC` pump is available with a choice of mechanical seals, Type 21 single or double. The seal is mounted "in-board" and, thus tends to be self-cleaning. It is available as a single seal solution flush or as a double seal which requires external liquid to flush. When ordered with a double seal, the pump will better handle abrasives, solutions which tend to crystallize, and dry run operation.

Series `RC` pumps are constructed of cast iron with a synthetic fiber gasket. Standard pumps feature EPDM or FKM elastomers with ceramic and carbon seal faces. These pumps use a standard NEMA C face motor. Motors are TEFC, 3450 RPM @ 60 Hz or 2850 RPM @ 50 Hz.
