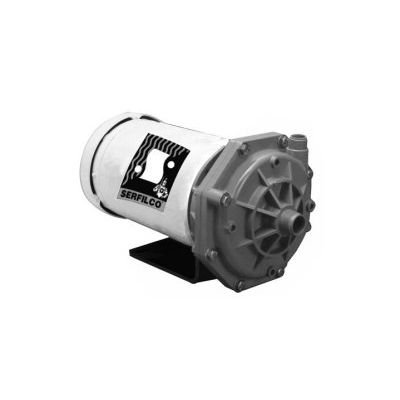

Serfilco - Model Series HH -Horizontal Pumps
High discharge head performance, D. I. water / photo processing, plating / etching / electronics, water treatment / acid transfer. Material: CPVC, PVDF. Performance: 10-60 gpm to 65 psi.
Most popular related searches
pedestal mount pump
flexible coupling
water treatment
process water
process water treatment
acid water
acidic water
- Flows to 68 gpm or 167 ft. TDH @ 60 Hz
- Non-metallic solution contact CPVC, PVDF
- Single mechanical seal
- Connections: 1" MNPT inlet and 3/4" MNPT outlet
- Maximum solid size - .15" (3.8mm)
- Series `HH` pumps are molded of natural CPVC or natural PVDF. They feature a volute designed for high TDH at high efficiency and all around optimum performance. The unique sleeved impeller design and non-metallic internally mounted mechanical seal combine to provide a compact assembly offering nonmetallic solution contact.
- Five impeller diameters provide a full range of flow and head performance with efficient use of motor horsepower. Motors are standard NEMA 56C, TEFC. For explosion-proof motors, consult Sales Department.
- Pedestal mounted pump assemblies are available for 1/2 to 5 HP standard end bell motors. An optional long-coupled kit includes cast iron bearing, pedestal frame, flexible coupling, guard and FRP mounting channel.
