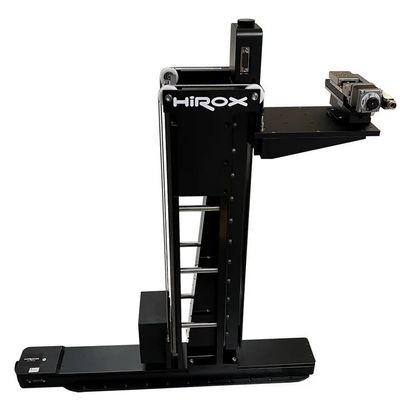

Hirox - Model ST-T500 -Horizontal T-Stand

• Motorized X axis (bottom): 500 mm
• Motorized Y axis (moving up and down): 500 mm
• Step size: 0,2 micrometer
• Maximum XY moving speed: 10 mm / sec
• Compatible with FB-E motorized and manual Z-axis block as well as “Z-only axis”
• Motorized Z axis: up to 80 mm
• Also available with XY axes: 100, 200, 300, 1000 & 1500 mm

Hirox created a completely new angle stand featuring multiple integrated sensors and a high precision 80 mm motorized Z movement, providing the highest level of accuracy for various applications.

The XY stage can be manual or motorized (50 x 50 mm or 100 x 100 mm) for automatic XYZ acquisition. The stand also integrates built-in transmitted illumination, controlled by the HRX-01 software, increasing the observations
capabilities, as well as antivibration feet for improved stability. A rotary plate can be added to spin the sample in any direction!

Thanks to various sensors – including height and angle – the ST-AS stand truly supports the users, offering intelligent & stress-free observation.

For a maximum ease-of-use, all 4 axes (X-Y-Z-R) can be controlled with the wireless 3D-mouse controller
