Tecniplant - Horizontal Vacuum Belt Filter

FromTecniplant S.p.A.

SHARE

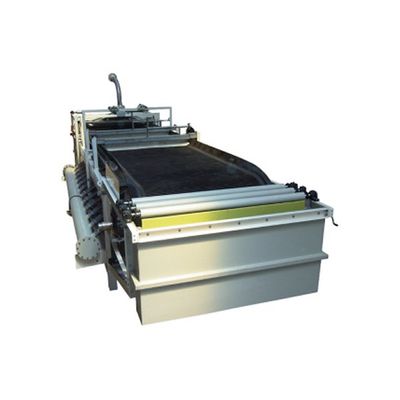

One type (HVBF – Horizontal Vacuum Belt Filter) is equipped with a special reinforced rubber belt with draining grooves supporting the filtration cloth. The belt and the cloth are simultaneously driven continuously. HVBF is normally used with high capacities, heavy solids and large filtration surfaces.

Most popular related searches

horizontal vacuum belt filter

vacuum belt filter

horizontal belt filter

solid-liquid separator

solid-liquid separation

sludge dewatering chemical

High operational flexibility
Easy maintenance and low related costs
High washing efficiency
Separation of main water from washing water
Cake thickness, vacuum rate and belt speed may be easily and independently varied to get the best results
Partial or complete protective hoods can be provided
Steam drying available
Construction in a wide range of sizes from 0.1 m2 pilot lab units up to 150 m2 larger production systems

Tecniplant’s LAB will test the products and give the best solution in order to provide the right operational system.
Vacuum Belt Filter pilot units are also available in order to run on-site tests.

Gypsum Dewatering Systems (FGD and WFGD)
Metal production sludges
Aluminium foundry sludges
Mineral dewatering
Chemicals production

Main Solid-Liquid Separations Products

Tartaric Acid, Citric Acid
Boric Acid, Phosphoric Acid
Phosphates, Sulphates
Sulphur recovery
Silica/Mineral Sands
Copper, Nickel, Zinc
Silver, Iron ore, Fly Ash, Gold
Lead, Coal
Pulps containing solids with high bulk density
Chemical and Pharmaceutical products
