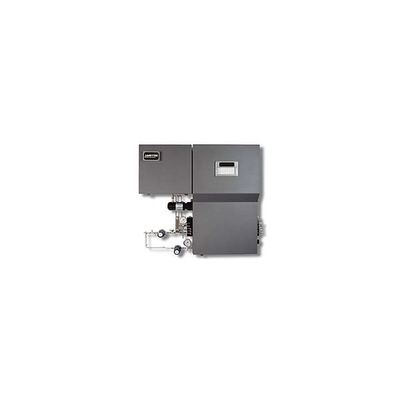

AMETEK PI - Model 910 -Hot/Wet Multi-Gas Mass Flow CEM

The 910 performs all necessary flow management for sample and calibration gases, and provides probe and sample line temperature control, in addition to measurements mentioned above.

A full-featured continuous emissions monitoring (CEM) system, the 910 is ideal for measurements of stack emissions in the hydrocarbon processing industry.

HIGH-RESOLUTION UV TECHNOLOGY
With a dual-beam, multiple-wavelength configuration, the 910 delivers a resolution better than 0.02nm. The dual-beam design combines with a reference measurement to ensure low noise performance with minimal baseline and span drift.

NO INTERFERENCES FROM H₂O AND CO₂
Ultraviolet (UV) measurements do not suffer from water (H₂O) and carbon dioxide (CO₂) interference, as these species are transparent in the UV. This greatly simplifies sample handling and ensures a more accurate analysis.

FULLY EXTRACTIVE, HOT/WET ANALYSIS
The sample cell and all components in contact with the sample are heated above the dew points of all gases in the sample stream. This results in a simpler, more accurate calculation of gas concentrations.

The 910 is our complete CEM system for monitoring multiple pollutants in stack emissions on a mass rate basis. – Find out more.

• Ability to measure up to five different gases
• Multi-range sulfur dioxide measurement
• Independent nitric oxide (NO) and nitrogen dioxide (NO2) measurement
• Automated zero and span gas calibration
• Incorporates flow measurement for emission rate calculations

Methodology:Multiple wavelength, high resolution, non-dispersive UV

• Optional O2: Integral Zirconium Oxide
• Accuracy: Better than ±1% full scale
• Repeatability: Better than ±0.5% full scale
• Linearity: Better than ±1% full scale
• Response Time: Typically less than 30 s to T90 (excl. sample system)
• Number of Gases: Up to 5 simultaneously (refer to AMETEK for possible combinations)
• Sample Transport: Air aspiration
• Sample Gas Temperature: Ambient to 150°C (302°F)
• Typical Sample Flow: 3 to 5 L/min. (0.1 to 0.2 CFM)
• Temperature Control: Independent control of three zones (oven, sample line, probe)
• Pressure and Temperature Compensation: Standard
• Ambient Temperature2: 5° to 50°C (41° to 122°F)
• Instrument Air: Minimum 413.6KPa (60 psig), 120 L/min (4.24 CFM), instrument quality air
• Power: 120 VAC ±10%, 47 to 63 Hz or 240 VAC ±10%, 47 to 63 Hz, 600 W for analyzer only

Communications

• Analog: 4 x 4-to-20 mA self-powered
• Digital: One RS232 port for service diagnostics
• One RS422 with Modbus protocol
• Relays: 3 independent sets of SPDT relays alarm conditions
• Physical Dimensions: 1555.3 x 1117.6 x 306 mm (61.17 x 44 x 12 in.)
• Weight: Estimated minimum 160 kg (350 lbs.)
• Approvals and Certifications: NEC/CEC Class I, Division 2, Groups C & D
• ATEX II 2G EEx pd IIB T3
• Russian Ex Proof Certification; 1ExpydIIBT3
• Russian Gosstandard Pattern Approval
• Complies with all relevant European Directives

1. Accuracy may vary on some applications where multi-species measurement is required.
2. Temperature drift is approximately 1 ppm/°C for the species listed. To achieve maximum accuracy and stability, you can either install the analyzer in a temperature-controlled environment or zero the analyzer more frequently.
