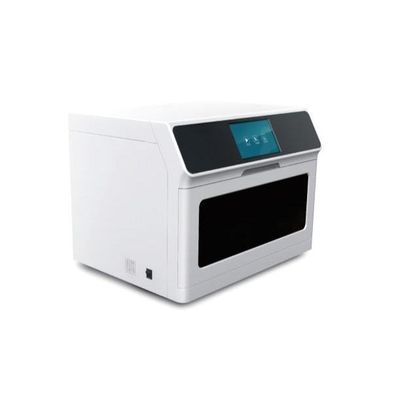

HRJ - Model X9600 -Automatic Nucleic Acid Extraction System

Accurate
The data and amplification plot shown below compares the PCR results of samples prepared using this extraction system in combination with the HRJ Biotech Nucleic acid extraction & purification kit to those prepared using QIAamp Viral RNA Mini kit (spin-column extraction kit).

High-precision, CV<5%
Unique design of the collection chamber tip, extracts up to 20 uL of highly concentrated sample

High-efficiency
96samplesperl3min
Fast heating, reaches 90°C in one minute, reduced waiting time

Safe
Inner UV ultraviolet disinfection
Widely-spaced cabin and disposable extraction kit
cross-contamination risk

• Principle: Magnet Bead method
• Throughput: 96samplesperl3min
• Sample volume: 20-1000 uL
• Sensitivity: The positive detection rate of 102 copies > 95%
• Accuracy: CV<5%
• Heating: 25-90pC. 60°C in 30 s. 90`C in 1 min
• Internal procedure: 30 pre-programmed protocol
• Sample type: Blood, swab, stool, etc.
• Dimensions: 757.525.5S6mm.60.0kg
• Kit: Disposable extraction & purification kit, 96 preps per box
