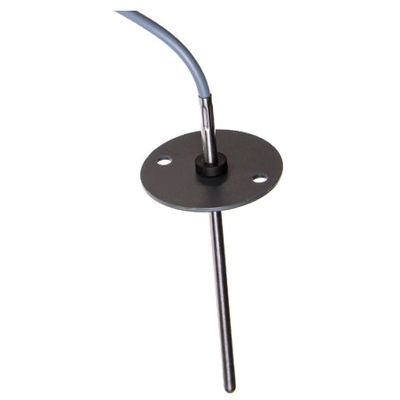

Evikon - Model ET204 -HVAC/R Temperature Sensor
FromEvikon MCI OU
ET204 temperature sensor is designed for use in HVAC/R systems.
Most popular related searches
temperature sensor
NTC thermistor
HVAC
temperature transmitter sensor
HVAC system
stainless steel tube
HVAC sensor
temperature transmitter
- Pt1000, Ni1000 RTD or NTC thermistor
- -40...+105 °C operation
- Stainless steel or plastic protection tube
- Plastic flange with rubber grommet
- Two-wire PVC insulated cable
- Sensing element:
- Pt1000 EN60751 class F0.15 or F0.3
- Ni1000 DIN 43760 or LG curve
- customer specified NTC thermistor
- curves A, B, C, D, F or as specified
- Stem size options:
- diameter D 4 / 5 / 6 mm
- length L 30...250 mm
- Protection tube material
- thermoplastic polymer
- or AISI 316L / EN1.4404 stainless steel
- Protection class: IP55
- Cable: LiYYW 2×0,25 mm^2
- Cable length: from 200 to 20 000 mm
- Operation conditions: -40...+105 °C
