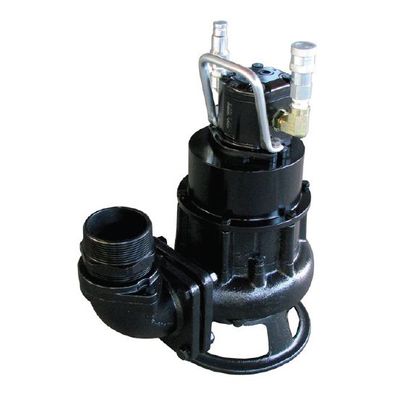

Hydra-Tech - Model S3SHR -3 Inch Hydraulic Submersible Shredder Pump
FromHydra-Tech Pumps
The S3SHR is designed to continuously rip and shear solids with a 360° shredding action. The smaller size allows for use in tight spaces. For municipal, industrial, agricultural and institutional waste applications. A guide rail assembly is available for stationary applications.
Most popular related searches
oil-lubricated seal
tungsten carbide
shredder pump
shredder
hydraulic submersible pump
submersible hydraulic pump
hydraulic shredder
submersible pump
sludge pumping
macerator
- Dual-Vane Shredder Impeller with Tungsten Carbide Cutting Tip
- Hardened Macerator Suction Plate
- Oil Lubricated Seals (can run dry)
- Variable Speed hydraulic drive to 3800 rpm
- Versions for Portable or Fixed Installations
- Safe Hydraulic Drive can be used where electric power is hazardous or impractical
- Dependable gear type hydraulic motor
- Operates with our HT10 to HT20 power units or other hydraulic power sources capable of flows of 6 - 10 GPM
- Weight: 73 Lbs. (33 kg)
- Height: 18.5" (47 cm)
- Diameter: 15 1/4" (39 cm)
- Discharge: 3" NPT(F)
- Solid Handling: 1.6" (4 cm)
- Hose Ports: 5/8 (-10) SAE(F)
- Pump Body: Ductile Iron
- Impeller/Screw: Ductile Iron
- Elastometers: Buna N
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max. 10 GPM (38 LPM)
- Operating Pressure: Max. 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
