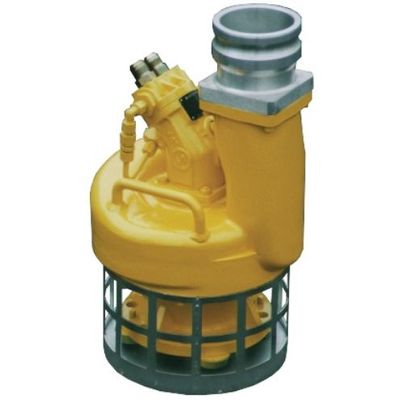

Hydra-Tech - Model S4SCR -4 Inch Hydraulic Submersible Centrifugal Screw Pumps

SHARE

The S4SCR is ideal for pumping high viscosity liquids such as crude oils, latex, molasses and refinery wastes using a positive displacement screw. When pumping lighter materials, the impeller acts as a centrifugal type providing high volume outputs.

Most popular related searches
screw pump
centrifugal screw pump
flange adaptor
refinery waste
centrifuge
submersible centrifugal pump
4 inch submersible pump
screw-centrifugal pump
hydraulic submersible pump
positive displacement pump
  • Weight: 54 lbs
  • Height: 20.75" (53 cm)
  • Diameter: 11.75" (30 cm)
  • Discharge Size: 4" Camlock or Flange Adaptor
  • Inlet Flange: 4" 125# ASA or 100 mm metric
  • Solid Handling: 2" (5 cm) 1 3/4" with strainer
  • Hose Ports: 3/4" JIC (M)
  • Pump Body: Seawater Resistant Aluminum
  • Hose Ports: Nodular Cast Iron
  • Suction Case: Ceramic Coated
  • Elastometers: Viton (Std)
  • Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
  • Input Flow: Max. 12 GPM (45 LPM)
  • Operating Pressure: Max. 4000 PSI (272 Bar)
  • Power Source: Any Open Center Hydraulic System
