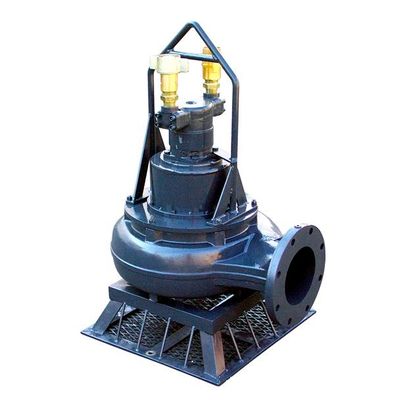

Hydra-Tech - Model S6200 -8 Inch Hydraulic Submersible High Performance Solids Handling Pump
FromHydra-Tech Pumps
The S6200 is a Highly Efficient Solids Handling Effluent Pump for use on jobs such as waste lagoons, sewer by-pass, barge transfer, municipal lift stations and tank pumping. Heads to 220 feet with flows to 3500 GPM. Also used as high volume feed pump for fire suppression mobile systems.
Most popular related searches
solids handling pump
solids pump
solids pumping
effluent pumping
lift station
effluent pump
fire suppressant
fire suppression
fire suppression system
submersible solids handling pump
- Weight: 715 lbs. (324 kg)
- Height: 41" (104 cm)
- Diameter: 28.5" (72 cm)
- Discharge Size: 8", 125# ASA Flange
- Inlet Flange: 8", 125# ASA Flange
- Solid Handling: 4" (10 cm)
- Hose Ports: 1-1/4" Code 61 Flange or 1-1/2" NPT (F)
- Pump Body: Ductile Iron
- Hose Ports: Ductile Iron
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max 90 GPM (340 LPM)
- Operating Pressure: Max 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
