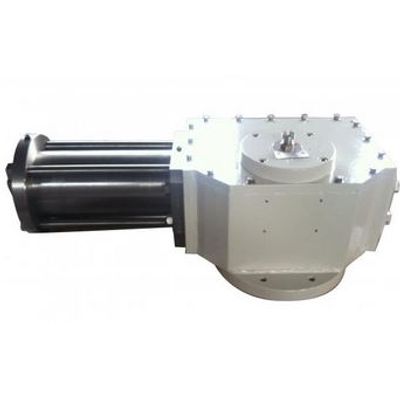

Veson - Hydraulic Actuator
Veson valve ltd offers a practical and reliable method for opening and closing valves by remote control without the need for expensive and unnecessary gearing, hydraulic pumps, or other motor-driven devices.
Most popular related searches
hydraulic actuator
quarter turn valve
plug valve
hydraulic gear pump
butterfly valve plug
louver damper valve
actuated valve
butterfly valve
gear pump
damper
Operating temperatures of -60oC to 93oC Optional low temperature trim allows continuous operation from -46oC to 82oC (-50oF to 180oF). High temperature trim provides operational capabilities from -18 oC to 177 oC (0 oF to 350 oF).
Operates at pressures up to 17 bar (250 psig) or hydraulic pressures up to 207 bar (3000 psig). Consult factory for hydraulic applications.
- Pair with ball, butterfly, plug valves, louvers and dampers, and quarter-turn valves.
- Torque/Thrust Range:
- Double-acting actuators minimum output torques to 5,687 Nm (50,331 lb-in).
- Fail safe spring-return models minimum spring ending torques to 2,039 Nm (18,044 lb-in).
