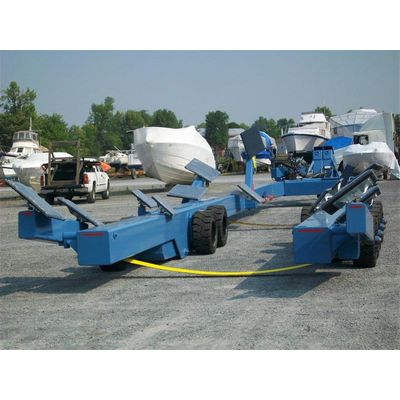

Kropf Conolift - Model Y-80 -Hydraulic Boat Yard Trailers for Efficient Space Management

FromKropf Industrial Inc.

SHARE

Conolift's hydraulic yard trailers are engineered for durability and efficiency, designed for the rigorous demands of boat yards. These trailers facilitate optimal space management through their expanding frame width, allowing boats to be stored in close proximity while safely handling varying vessel sizes. Equipped with hydraulic frame lifts, these trailers offer versatile self-load and unload capabilities, making them suitable for various boat types, from smaller vessels to massive boats up to 90 feet long. They come equipped with robust components such as solid mining tires, reliable Honda engines, and pilot-operated lock valves that ensure all lift functions are secure and dependable. The trailers come in various models with load capacities ranging from 6,000 lbs to 200,000 lbs, accommodating boats with lengths from 16 feet to 90 feet. This range ensures that every operation can find a trailer suited to its specific needs, whether it concerns size handling or load management within the yard.

Most popular related searches

pilot operated safety valve

hydraulic lifting

hydraulic cylinder

polyurethane coating

Powerboats to 80′ LOA
Sailboats to 82′ LOA
Capacity (weight) – 160,000 lbs off-road
16″ x 16″ x .500″ HSS steel tube frame – bridged construction
Hydraulic expanding width frame (expands from 66 1/2″ to 96 1/2″ inside the inner wheels)
Hydraulic tongue with pintle ring
Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 47″
Hydraulic Power: 24 HP Honda gasoline engine
Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
Telescopic hydraulically operated rear cross-bar
8 – 8″ x 8″ aluminum keel support bars
Six: Telescopic (extendable) hydraulic arms
Forward arms pivot inward to accommodate narrow beam boats
O-ring boss and JIC hydraulic fittings
Zinc coated steel hose ends and fittings
High strength hydraulic cylinder shafts
Stainless steel hardware (nuts/bolts/pins)
Walking beam suspension
Tires: 28″ premium wide-trac solid Titan tires
Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear

Load Capacity: 160,000 lbs
Boat Length: 30` - 80`
A: 159" - 189"
B: 97" - 127"
C: 29" - 64"
D: 14` 6"
E: 42`
F: 67`
Engine HP: 18
Shipping Weight: 30,000 lbs

Custom PPG colour choice – 189 colors to choose from
Black or white decal (company name & telephone number) on both sides of unit
Stainless steel hose ends & fittings package (includes SS cylinder shafts)
Front dolly
Wireless remote control
Hydraulic fifth wheel gooseneck (2″ SAE pin)
Hot dip galvanized frame and components (in lieu of standard painting process)
