KRACHT GmbH

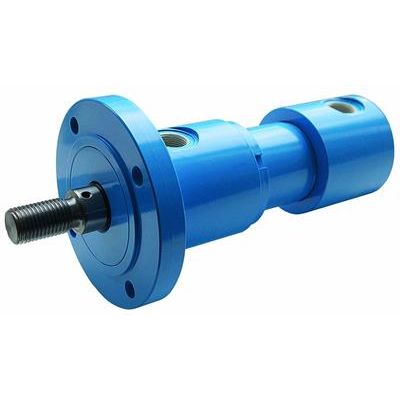

KRACHT - Hydraulic Cylinder CNL
FromKRACHT GmbH
• Piston Ø 40-100 mm
• Modern seals and guide elements
• Simple replacement of wear parts through rugged screw system
• Subsequent retrofitting and revaluation possible through unit construction system
• Rod screw thread, non-toleranced dimension, position and size of the connections etc, can be implemented according to customer preference
Variants
• Trunnion mounting on cylinder tube
• Universal joint or bearing bush on base of cylinder
• Flange on the cylinder head
• Flange on cylinder base
• Flange on the cylinder head and baseMost popular related searches
Nominal pressure: 200 bar
Piston diameter: 40 … 100 mm
Stroke length: … 4000 mm
Stroke speed: … 0.5 m/s
