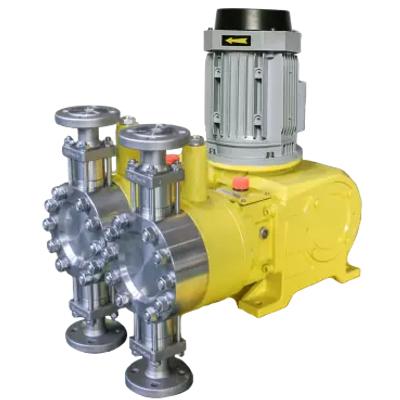

LigaoModel 2TJYPZ Series -Hydraulic Diaphragm Dosing Pump

SHARE

2TJYPZ series hydraulic diaphragm pumps are an integrated pump that can offer precise dosing performance minimal maintenance with duplex heads. It is integrated safety valve against overload pressure. The PTFE diaphragm is durable and provides consistently accurate metering.

Most popular related searches

Materials:

  • Pump head: SS304,SS316;
  • Pump case: Cast Iron;
  • Diaphragm: PTFE;
  • Valves: SS304,SS316;
  • Valve Ball: SS304,SS316, Ceramic;

Power Supply:

Power:  0.75kw/1.1kw/1.5kw IEC80 4 Pole Motor

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
