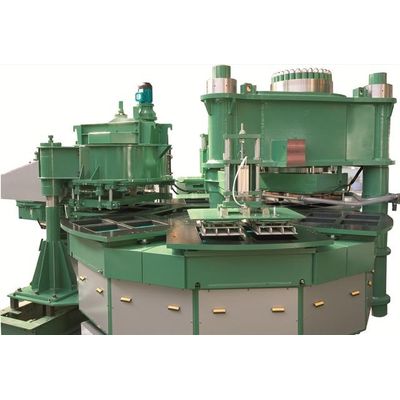

Longinotti - Model K1206/DS -Hydraulic Double Layer Revolving Presse

6-station press of very high productivity, powerful and extremely sturdy . Suitable to mould double-layer cement-agglomerated tiles up to the size 1050×500 mm or 600×600 mm. Step-by-step moulding process controlled by a special hydraulic proportional valve for increased productivity and optimal compacting of the final product. Moulds vibrators of 2300 W each; intensity of vibration adjustable from the control board. Revolving of the table by means of large-diametre toothed wheel and pinion, driven by geared motor fed by inverter. Provided with automatic dosator of the wet mix with large-diametre dosing cups, internally chromium-plated and adjustable in volume. Interchangeable moulding frames capable of fitting inner rings with depth up to 120 mm for a thickness of the moulded produtct up to 80 mm.
