Harden - Model QSH Series - Hydraulic ...

Harden - Model QSH Series -Hydraulic Drive Four Shaft Shredder

Harden QS Series four shaft shredder has intelligent control system for each of shaft, which enables each shaft working with their own shredding and protection actions to increase the shredding frequency and output. Harden QS Series equipped hydraulic and electric motor combine driven system, which remains benefits, high torque and flexible control for main shaft, high efficiency and energy saving for vice shafts. QSH is excellent if heavy-duty and particle size control shredding works.

Most popular related searches

four shaft waste shredder

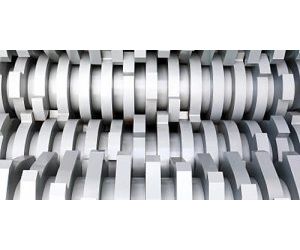

The independent intelligent control system of Harden QS four shaft shredder enables each cutter roll to have independent shearing and protection action, which improves the shear frequency and output. The main shaft of four shaft shredder is responsible for shearing, and the countershaft is responsible for feeding. By optimizing the shear structure and control principle, Harden four shaft shredder has achieved a major breakthrough in cutting efficiency.

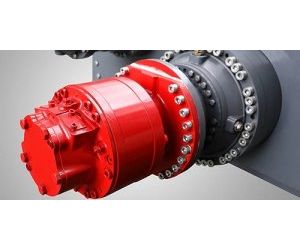

In addition, QSH series four shaft shredder adopts hydraulic and motor coordinated drive, which not only has the effect of large torque and flexible control of hydraulic drive, but also retains the advantages of high efficiency of motor drive, energy saving,provides an excellent solution for heavy shearing conditions with high discharge size requirements.

Model:QS1012?QSH1012?QSH1316?QSH1618
Motor Power(kw):75+2*30?160+2*30?250+2*55

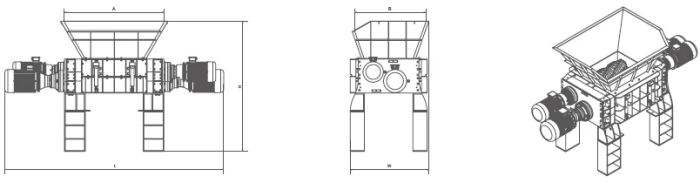

Size of Cuting Chamber(A*B)(mm):1020*1200?1300*1620?1800*1600

Features
