Harden - Model TDH Series -Hydraulic Drive Heavy Duty Two Shaft Shredder

Harden TDH series hydraulic motor driven two shaft shredders are used for heavy-duty shredding of tough materials like metals, such as aluminum profiles, metal scraps, automobile scrap, coppercable, and ragger wire of paper mill waste. The most advanced feature is that the shredder can turn forward and revers without stopping the motor at anytime. Powerfully shredding force generating by hydraulic unit with dynamic-changing rotating speed and torque. Shredders equipped hydraulic system and motor for highly reliable performance and low maintenancecost. Harden TDH series shredder can be integrated in mobiles recycling systems. Acomplete car scrap can be fed into the huge shredding chamber withopenings of 1300~1600 mm in length. Relentless shredding force destroy and smash any solid waste quickly and smartly.

Most popular related searches

double shaft shredder

industrial waste shredder

hydraulic double shaft shredder

scrap metal shredder

mobile recycling system

Heavy duty:
Harden TD/TDH series are heavy-duty double shaft shredder that are suitable to process all kinds of solid waste and gain recognition from customers by its powerful and stable performance. TD series represent electrical motor version and TDH series are driven by hydraulic power unit. The installed power of each model ranges from 60 to 400 KW.

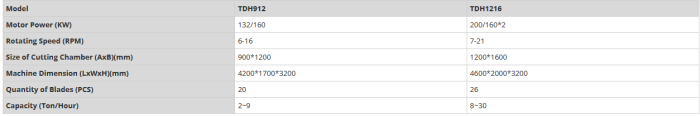

Model:TS303?TS508?TS612?TD612?TD912?TD1216(Hydraulic driven)
Motor Power(kw):7.5?22?37?60+45?132?200

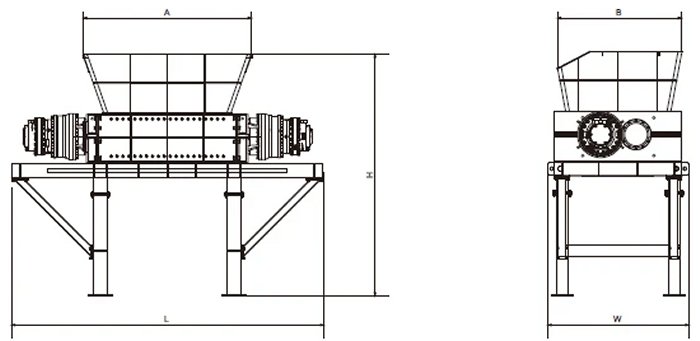

Size of Cuting Chamber(A*B)(mm):320*300 ?850*500?1250*650?650*1250?900*1250?1200*1600
