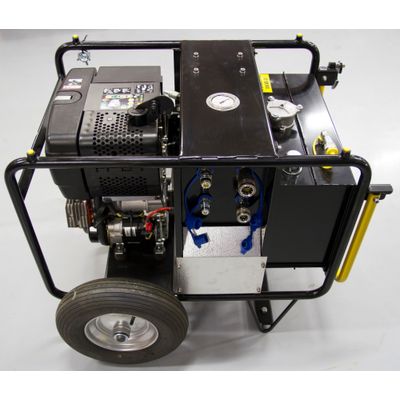

Lamor - Model LPP 7 -Hydraulic Power Pack
The Lamor Power Pack LPP 7 is used as a power source for the range of Lamor skimmers and smaller hydraulically operated equipment. The power pack represents a light-weight, easily portable power solution for hydraulic equipment that can be operated in remote locations.
The LPP 7 is equipped with a 7.3 kW (9.7 hp) air-cooled single cylinder diesel engine mounted in a mobile frame manufactured in tough tubular steel. An electric start is standard with a manual start as back up.The LPP 7 comprises 2 hydraulic circuits supplied by an 8 cm3 hydraulic pump and is capable of producing a working pressure of 170 bar with a maximum hydraulic oil flow rate of 28 l/min (7 gpm).
Also the LPP 7 HA can be equipped with optional spark arrestor and/or Chalwyn safety shut down valve.
Standard connectors:
Valve 1: 1/4″ TEMA 2511 (F/Pressure)/2521 (M/Return), 5 l/min
Valve 2: 1/2″ TEMA 5011 (F/Pressure)/5021 (M/Return), 25 l/min
Drain: 3/8″ Aeroquip Female ISO C23071-06
- Portable and light weight with wheels
- Multipurpose power source
- Electric start as standard
- Manual back-up start
- Air cooled single cylinder engine
- Robust steel frame
- Four point lifting rings as standard
- Item ID: 226150
- Length: 945 mm / 37 in
- Width: 850mm / 33 in
- Height: 785 mm / 31 in
- Weight: 140 kg / 309 lbs
- Hydraulic Flow: 28 l/min / 7 g/m
- Hydraulic Pressure: 170 bar / 2465 PSI
- Fuel Tank: 5 l / 1,3 gal
- Delivery head: 30 m / 98,4 ft
- Suction lift: 9,1 m / 29,9 ft
- Power: 7,3 KW / 9,7 HP
