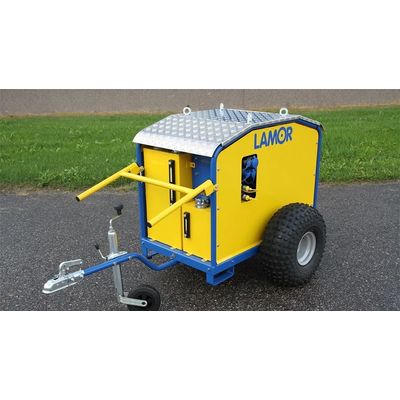

Lamor - Model LPP 19L -Hydraulic Power Pack
The Hydraulic Power Pack is used as a power source for skimmers and other smaller hydraulically operated equipment such as boom reels, air blowers etc. The power pack is a light-weight, easily portable power solution for hydraulic equipment that can be operated in remote locations.
The main components of the LPP 19L are: diesel engine, hydraulic pump, hydraulic power outlet connectors, hydraulic oil tank with hydraulic return filter, fuel tank, operation valve, battery, and frame.
For easy operation, an electric start is standard. The LPP 19L is equipped with two hydraulic circuits and a 19 kW (25.5 hp), the 3 cylinder water cooled diesel engine mounted in a mobile frame, with wheels manufactured in tough tubular steel.
The LPP 19 is supplied with high quality TEMA connectors as standard:
Valve 1: 3/8″ TEMA 3811/3821, 10 l/min (2.6 gpm)
Valve 2: 1/2″ TEMA 5011/5021, 40 l/min (10.7 gpm)
- Light-weight and portable with wheels
- Multipurpose power source
- Electric start as standard
- Four point lifting rings as standard
- Robust steel frame
- Optional ATV wheels
- Optional tow bar
- Optional pump addition
- Remote control option
Technical Specifications: 22 cc
- Item ID: 395284
- Length: 1190 mm / 46,9 in
- Width: 680mm / 26,8 in
- Width w/ tow bar: 190mm / 74,8 in
- Height: 990 mm / 39 in
- Weight: 295 kg / 650 lbs
- Hydraulic flow: 69 l/min / 18,2 g/m
- Hydraulic Pressure: 150 bar / 2176 PSI
- Power: 19 KW / 25,5 HP
- Hydraulic oil tank: 50l / 13,2 gal
- Fuel Tank: 18l / 4,8 gal
- Speed: Max 3000 rpm
- Item ID: 395571
- Length: 1190mm / 46,9 in
- Width w/tow bar: 1900mm / 74,8 in
- Width: 680mm / 26,8 in
- Height: 990mm / 39 in
- Weight: 295kg / 650lbs
- Hydraulic circuits: 2 pcs
- Hydraulic flow: 50l/min / 13,7gpm
- Hydraulic pressure: 210bar / 3046psi
- Power: 19kW/ 25,5 hp
- Hydraulic oil tank: 50l / 13,2gal
- Fuel tank: 18l / 4,8gal
- Speed: max 3000 rpm
