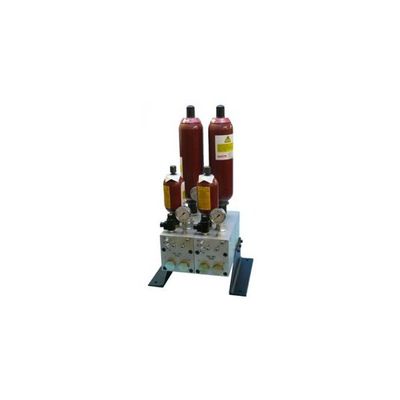

FOX-VPS - Model HSM -Hydraulic Service Manifolds

FOX-VPS has developed a range of Hydraulic Service Manifolds (HSM) to compliment the FOX-VPS hydraulic test actuator range and to facilitate control and distribution of the hydraulic supply. Fitted with a pressure control valve, 3 micron pressure filter and pressure & return hydraulic accumulators, a FOX-VPS HSM provides control, filtration, pressure ripple smoothing and flow augmentation of the pressurised oil supply to the actuator. The HSM isolates the main pressure source from the test actuator (or distribution manifold) and provides interlocked independent control of oil outlets. Main supply pressure is selectable OFF/LO/HI by two solenoid valves with smooth transitions between LO and HI pressures in either direction.
