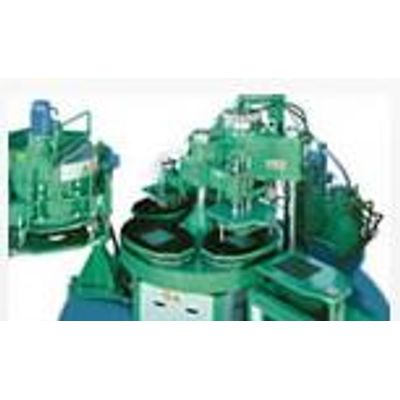

Longinotti - Model K1204 MS -Hydraulic Single Layer Presses
The 4-station press mod. K1204/MS is a powerful, high-capacity machine designed for the moulding of MS single-layer tiles for indoor or outdoor application up to the size 600×600 mm by using the Longinotti patented system for evacuation of the excess of water from the wet mix through the special draining and filtering pressing pads.
Most popular related searches
- Moulding force: up to 1200 tons
- Productivity: up to 200 m²/h in the size 400×400 mm.
- The new system allows the switching of production from indoor tiles to outdoor ones by simple and quick replacement of the mould polyurethane bottom.
- Frame made of exceptionally sturdy steel construction of high rigidity.
- Hydraulic unit specially designed for reduced energy consumption, with proportional programmable valve which allows a step-like pressing for optimal compacting of the mix.
- Revolving of the table by means of large-diametre toothed wheel and pinion, driven by geared motor fed by inverter.
- Moulds vibrators of 2300 W each; the intensity of vibration is adjustable from the control board.
- Automatic dosator of the wet mix with hydraulic tightening between cups and shutter plates. Large-diametre dosating cups, internally chromium-plated and adjustable in volume.
- Switch-and control board with PLC SIEMENS S7
- The K1204 MS/SL version furthermore allows for the moulding of MS single-layer slabs up to the size 1400×600 mm and with thickness from 20 to 50 mm to be eventually processed into steps or other final large-size products.
