Drillmec - Model HTD Series -Hydraulic Top Drives

SHARE

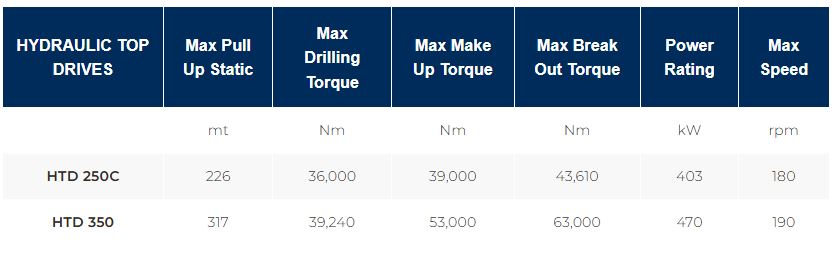

Our hydraulic top drive series are designed to deliver high performance, can be fitted to almost any mast design available. It has the following features: Maximum speed range of between 180 rpm to 190 rpm. Power rating range of between 403 kW (5340 hp) to 470 kW (630 hp). Maximum drilling torque range of between 36,000 Nm (28,765 lb/sqft) to 53,000 Nm (39,090 lb/sqft). Maximum pull up static load of 226 mt (500,000 lbs) to 317 mt (700,000 lbs).

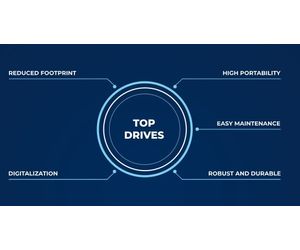

REDUCED FOOTPRINT

Compact and lightweight suitable for narrow masts.

HIGH PORTABILITY

Easy and safe assembly and connections using the onboard HPU and the independent VFD.

EASY MAINTENANCE

Easy access to frequently maintained parts.

ROBUST AND DURABLE

Can withstand a wide range of harsh environmental conditions from -45 oC to +55 oC.

DIGITALIZATION

Maximise operational efficiencies with stick slick mitigation and slide drilling control.
