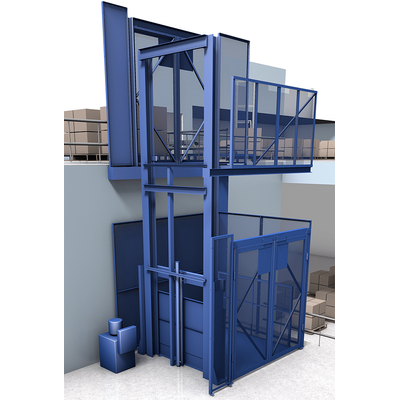

Pflow - Model D Series -Hydraulic Vertical Lift

D Series hydraulic VRCs are low-maintenance and are ideal for lifting a variety of loads, including pallet loads, to mezzanines and balconies.

This hydraulic materials lift has a carriage size of up to 6’ wide by 6’ long, large enough for pallets, and a vertical rise of up to 15’. It is suitable for indoor or outdoor use, and can reach two levels.

D Series VRC Overview

• Load capacity up to 3,000 lbs based on carriage size
• Carriage sizes up to 6’ x 6’
• Vertical rise to 15’
• Standard travel speed is 17 feet per minute
  • Up to 25 FPM available
• 10 cycles per hour; 100 per day
• Suitable for indoor or outdoor use
• Hydraulic actuating mechanism
• Lifetime structural warranty
• Conforms to ASME B20.1 Safety Standards

Advanced safety features built into each D Series VRC

• Mechanical stops ensure positive carriage leveling with the upper deck and prevent overtravel
• Pressure switch prevents the carriage from drifting or sinking, providing for highly stable loading and unloading
• Velocity fuses prevent uncontrolled descent in the event of an unlikely hose rupture
• Check valves hold the carriage in place in the event of power loss

• Remote-mounted control panel and motor are pre-wired and ready for immediate installation
• Cantilever carriage is lifted and lowered by dual 2” direct-acting hydraulic cylinders mounted between 6” guide columns
• Direct-action guided Dual-Pak design has no cables, chains, sheaves, sprockets, bearings, or other components that can break or require lubrication for long-term performance
• Pressure compensated control valve regulates the flow of hydraulic oil for a constant lowering speed under any load
• Ultra-high molecular weight, polyethylene cylinder guide prevents cylinders from twisting during operation –
  improving cylinder life
• Optional quick-connect cabling for push-button stations and gate interlocks greatly reduces field-wiring costs
• Optional hot-dipped galvanized or epoxy finish for outdoor or wash-down environments
