Michell Condumax - Model II -Hydrocarbon Dew-Point Analyzer

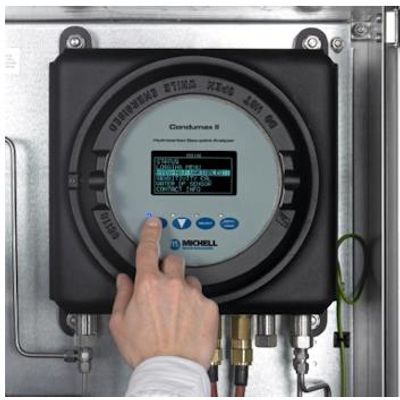

The Condumax II is housed in a compact explosion-proof enclosure. Both indoor and outdoor sampling systems are available as standard providing comprehensive sample conditioning natural gas at up to 138 barg. For specific applications and requirements, we offer a custom engineering design service.

Condumax II is suitable for use with natural gas containing up to 20% hydrogen with no further modification required.

• Fully automatic on-line analysis
• Objective, highly repeatable measurements
• 0.5°C hydrocarbon dew-point accuracy
• Fundamental chilled mirror principle
• Patented detection technique
• Self-cleaning
• No purge or cooling gas required
• Optional water dew-point analysis
• Modbus RTU
• IECEx, ATEX, cQPSus and GOST Ex certifications

• Measuring Technique Dark SpotTM fixed sample analysis.
• Direct photo-detection of hydrocarbon condensate at hydrocarbon dew-point temperature
• Sensor Cooling Automatic via 3-stage Peltier effect electronic cooler under adaptive control
• Maximum Range Up to Δ -55K measurement depression from Main Unit operating temperature
• Accuracy ±0.5°C hydrocarbon dew point (single and multiple condensible component analysis)
• Sample Flow 0.03m³/hr (0.5 Nl/min) - alarm standard
• Measurement Frequency 6 cycles/hour (recommended)
• 12 cycles/hour (maximum)
