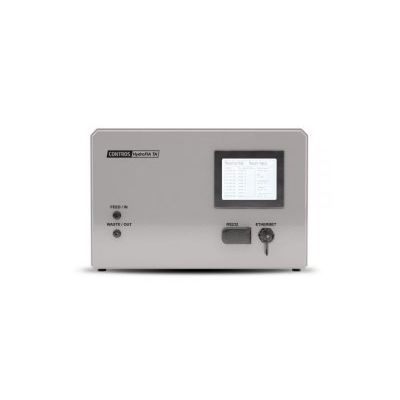

HydroFIA - Model TA -Flow Through System
The CONTROS HydroFIA TA is a flow through system for the determination of the total alkalinity in seawater. The HydroFIA TA can be used for continuous monitoring during surface water applications as well as for discrete sample measurements. The autonomous TA-analyzer can be easily integrated into existing automated measuring systems on voluntary observing ships (VOS) such as FerryBoxes.
A defined amount of seawater is acidified using diluted hydrochloric acid (HCI). After acidification the generated CO2 in the sample is removed resulting in a so called open-cell titration. The subsequent pH determination is carried out by means of an indicator dye and VIS absorption spectrometry. Together with salinity and temperature the resulting pH is directly used for the calculation of TA.
- Fast measurement cycles (5 min)
- Robust pH determination using absorption spectrometry
- Low sample consumption (<100 mL)
- Low reagent consumption (<100 µL)
- `Plug and Play` reagent cartridges
- Minimized bio-fouling effects due to acidification of the sample
- Autonomous long-term installations
- Integration into automated measuring systems on VOS (e.g. FerryBoxes)
- Cross-flow filters for high turbidity/sediment loaded waters
- External pump
- Easy integration together with a HydroFlash O2 and the HydroCTM CO2 and CH4 family
