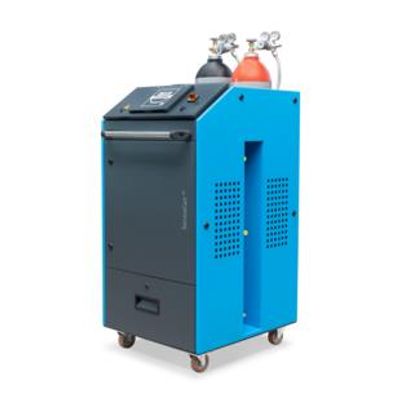

DILO - Model H2-Z002R01 -Hydrogen Service Cart

• Depressurisation of the hydrogen system (low-pressure system max. 60 bar)
• Inertisation of the system with nitrogen
• Residual gas measurement to confirm that the system is hydrogen-free
• Purging with forming gas for subsequent leak tests
• Leak tests to detect leaks after service

The device can be used for hydrogen systems up to a pressure of max. 60 bar. Line systems with higher pressure must be separated by means of shut-off devices in the vehicle.

• Paint: blue-anthracite

Electrical data:

• Electrical conneting cable: >= 1,5 mm“ (AWG 15)
• Cable with plug 16 A

Pressure sensors:

• Measuring range: 0 - 60 bar
• Measuring range H2 sensor: 0 - 100 vol-% in nitrogen

Connection to the vehicle:

• 2x 5 m long wire braided hose DN8, connecting couplings to the vehicle, can be individually specified
• 1x 20 m long hose for connecting to a suitable exhaust air device or for venting the gas outside the workshop

Gas supply:

• 1x for nitrogen
• 1x for forming gas (5% H2 in 95% N2)
• Gases and gas cylinders are not included

• Dimensions (W x H x D): 735 x 1.440 x 880 mm
• Sound level: < 70 dB
• Ambient temperature: 0 to +40 °C
• Storage temperature: -20 to +60 °C
• Ambient moisture: < 90 %: r. h. non-condensing
• Protection class: IP 44
• Height:  mm: max. 2000 m above sea level
• Operating voltage: 230 V: AC
• Frequency: 50/60 Hz
