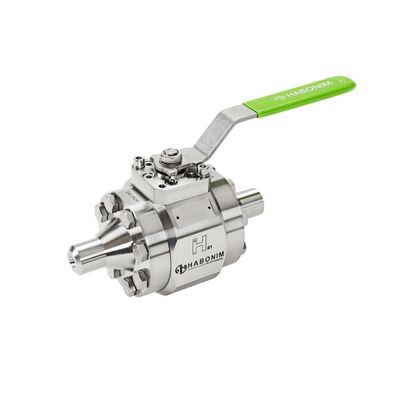

Habonim - Model H21 Series -Hydrogen Service High Pressure Floating Ball Valve
Ultra High-Pressure Hydrogen floating Ball Valve is specifically designed for high-flow welded lines. with a Size Range of 1⁄2”–2” (DN15–DN50) rated for 600 bar / 8,750 psi, (Class #3500).
Most popular related searches
floating ball valve
ball valve
high-pressure valve
float valve
hydrogen valve
emissions standard
emissions certification
packaging integrity
ATEX certification
- Operation
- Maximum Working Pressure: 600bar (8,750psi)
- Working temperature: -40°C up to +85°C (-40°F up to +185°F).
- Design
- Bolted body
- Full port
- Automation-ready with standard ISO 5211 connecting plate
- Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing
- Testing & Certifications
- ATEX IIC
- SIL 2
- 100% shell & inline leak tested
- Marine classification (on demand): DNV GL, LR, BV, ABS,
KR, RINA, others
- Materials
- Stainless steel body & ends
- All materials compatible with Hydrogen use
