HydroLynx - Model 50386 -Real-Time Data Transmitter

The HydroLynx Model 50386 ScadaLynx uses dual processor architecture and the latest in embedded processor technology to minimize power usage when idle and maximize computational power and performance when awake. The main processor is an Intel 386EX microprocessor that runs the main data collection, data telemetry, and control processes. The second processor is a low power PIC I/O processor that collects digital status and counter data. When the main processor is idle, it is put to sleep to conserve power. The PIC I/O processor wakes up the main processor on timed intervals, when digital event thresholds are met, radio carrier is detected, or data is entered on the console communication port.

Standard memory on the Model 50386 consists of FLASH, Battery backed SRAM, EEPROM, and a battery-backed Real-time Clock (RTC). 2 MB of nonvolatile FLASH is provided for program and configuration file storage and data logging. Although stored in FLASH, the program is copied into battery backed SRAM (512KB) for faster execution. Current sensor readings are saved in nonvolatile EEPROM (8KB) and the RTC stores the time in its own battery-backed SRAM. The contents of nonvolatile and battery-backed memory are not lost when power is removed.

The Model 50386 Data Transmitter is programmed using a Windows based Toolbox software package. Transmitter programming can be done directly using either one of the two onboard RS232 serial ports or remotely through telemetry equipment connected to these ports. The programming parameters include station identification; sensor I/O identification, scaling, sampling, computations, logging threshold, reporting threshold; alarm or control actions; communication parameters; power down settings; clock time and time zone; and data logging format and limit.

The Model 50386 Data Transmitter supports up to 16 analog inputs, 16 bit Analog to Digital converter, 12 digital status inputs, 4 low speed up/down counter inputs, 4 high speed up only counter inputs, 6 digital outputs, and 1 SDI-12 serial interface. Serial data collection is possible through one or more RS232 serial ports.

Virtual sensor data can be computed from sensor inputs to compute sensor averages, maximums, minimums and runtimes. Virtual sensor data can then be tested, alarmed, logged and transmitted just like actual sensor inputs.

Six digital outputs allow the 50386 Data Transmitter to perform local controls based on sensor upper, lower and change limits. Control resets are based on reset value and time interval limits.

Two RS232 serial ports in the standard package can be expanded to six ports to increase the number of communication paths. Communication formats include ALERT/IFLOWS, ScadaLynx, ASCII, and MODBUS. Communication paths can be through ALERT radio transceivers; SCADA radio transceivers; telephone, leased-line or microwave modems; GOES transmitter; direct serial connections.

Packaging for the Model 50386 includes the standard ALERT style canister and NEMA-4X fiberglass enclosure.

• RTR: Radio Link (Spedify frequency)
• 5073TBX: 50386 Toolbox Software
• 50386-OP1: 7 Pin MS Male RS232 Connector
• 50386-OP2: 10 Pin MS Female Digital Status Connector
• 50386-OP3: 3 Pin MS Male SDI-12 Connector
• 50386-OP4: 6 Serial Port Expansion
• 50386-OP5: Leased Line Modem
• 50386-OP6: Internal Power Supply
• 50386-OP7: GOES Radio
• 50386-OP8: ScadaLynx Radio
• 50386-OP9: Microwave Interface
• 50386-OP10: GOES Antenna
• 50386-OP11: Industrial Dial-up Modem
• 50386-OP12: Digital Input Expansion
• 50386-OP13: Analog/Digital Output
• 50386-OP14: Network Connector

PCOS

Processor: Intel 80386EX

Clock Speed: 33 MHz

Bus size: 16 bits

Serial bus: I2C

FLASH memory: 4 MB

EEROM memory: 8 KB

RAM memory: 1 MB

PIC I/O Processor

Clock Speed: 20 MHz

Communication bus: I2C

Communications

Serial ports: 2 RS232 standard

Serial port expansion: 4 RS232 additional

ALERT radio: Transmit/receive

ScadaLynx radio: Transmit/receive

Protocols: ALERT, ScadaLynx, Modbus, GOES, other protocols available

Internal telephone modem: Option

Analog Inputs

Number of external inputs: 16

(14 available, 2 reserved for on board voltage measurement)

Resolution: 16-bits

Input Ranges: 0 to 5 Vdc or 4 to 20 mA with resistor

Absolute error: 0.0015%

Linearity error: 0.003%

Ref. temperature stability: 5 ppm/°C

Up/Down Counter Inputs

Number of inputs: 4

Low speed input types: Form C, contact closure, direction line

Maximum input rate: 100 Hz

Input noise filtering: 200 kHz (-3 dB)

High Speed Counter Inputs

Number of inputs: 4

High speed input types: AC, 5 Vdc

Maximum input rate: 2 kHz

Input noise filtering: 5 kHz (-3 dB)

Digital Inputs

Number of inputs: 12

I/O types: Contact closure and 5 Vdc

Input noise filtering: 15 Hz (-3 dB)

Digital Outputs

Number of outputs: 6

I/O types: Low side, Open drain

Output capacity: 50 Vdc and 150 mA DC continuous sink current

SDI-12 Input

Input pins: Signal, Gnd, 12 Vdc

Power Required
(not including optional hardware and/or boards)

Fully asleep: 10 to 16 Vdc, < 3 mA

Fully awake: 10 to 16 Vdc, < 150 mA

Switched Power Supply

5 Vdc sensor power: 30 mA, maximum

12 Vdc sensor power: 500 mA, maximum

12 Vdc radio power: 6 A maximum

12 Vdc radio power amplifier: 5 A maximum

General

Operating temperature: -40 to 85 °C

Humidity: 0 to 95%, non-condensing

Models 50386-54, 90, 81

Enclosure: Aluminum canister

Size: 8 in. diameter x 23 in. high

Weight: 19 lbs with battery

Shipping weight: 12 lbs (battery shipped separately)

Sensor inputs: Keyed MS male connectors

  50396-54: 1 Precipitation Input, 1 SDI-12 Input

  50386-90: 1 Precipitation Input, 1 Up/Down Counter Input,

2 Analog Inputs, 1 SDI-12 Input

  50386-81: 1 Precipitation Input, 1 Up/Down Counter Input,

7 Analog Inputs, 2 Wind Inputs, 1 SDI-12 Input

Battery: 12 Vdc, 18 Amp-hour rechargeable gel cell battery

External 12 Vdc connector: 3 pin MS male connector for solar panel or

optional AC charger

Antenna: BNC female bulkhead

Serial ports (2): 7 pin MS male external connector,

9 pin DB9 male connector on board

Model 50386N, N-2, NZ and N-CP

Enclosure: NEMA-4X fiberglass

Size: 15.5 in. x 13.5 in. x 6.5 in.

Weight: 16 lbs with battery

Shipping weight: 12 lbs (battery shipped separately)

Sensor inputs: Enclosure with 7 cable strain reliefs

Connections:

  50386N: Screw terminal interconnect PCB for

2 Up/Down Counter Inputs,

7 Analog Inputs, 2 High Speed Counter (wind) Inputs,

8 Digital Inputs, 2 Digital Outputs,

1 SDI-12 connector onboard

  50386N-2: Same as 50386N with 2 Antenna Connectors

  50386NZ: Screw terminal interconnect PCB for

4 Up/Down Counter Inputs,

14 Analog Inputs, 4 High Speed Counter (wind) Inputs,

12 Digital Inputs, 6 Digital Outputs,

1 SDI-12 connector onboard

  50386N-CP: Keyed MS male connectors for

2 Up/Down Counter Inputs,

7 Analog Inputs, 2 Wind Inputs, 8 Digital Inputs,

1 SDI-12 MS connector

Battery: 12 Vdc, 18 Amp-hour rechargeable gel cell battery

External 12 Vdc connector: 3 pin MS male connector for solar panel or

optional AC charger

Antenna: N-type female lightning arrestor

Serial ports (2): 9 pin DB9 male connector on board

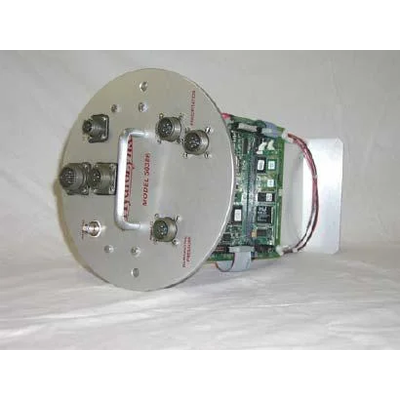

50386-54
Transmitter in Round Canister

• 1 Precipitation Input
• 1 SDI-12 Input

50386-90
Same as 50386-54 with

• 1 Precipitation Input
• 1 Up/Down Counter
• 2 Analog Inputs
• 1 SDI-12 Input

50386-81
Same as 50386-54 with

• 1 Precipitation Input
• 1 Up/Down Counter
• 7 Analog Inputs
• 1 Wind Input
• 1 SDI-12 Input

50386N
Transmitter in NEMA 4X Enclosure with

• 2 Up/Down Counters
• 7 Analog Inputs
• 2 Wind Input
• 8 Digital Inputs
• 2 Digital Outputs
• 1 SDI-12 Input

50386NZ
Transmitter in NEMA 4X Enclosure with

• 4 Up/Down Counters
• 14 Analog Inputs
• 4 Wind Input
• 12 Digital Inputs
• 6 Digital Outputs
• 1 SDI-12 Input

50386N-CP
Same as 50386N with MS connector package

50386-UG
5096 to 50386 Transmitter upgrade
