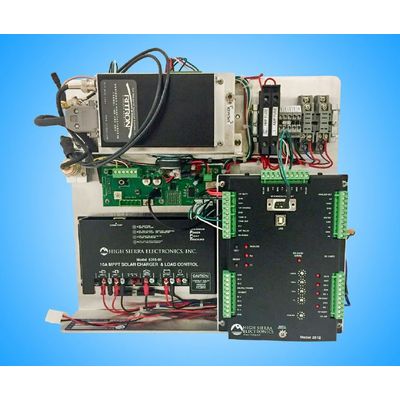

Alert 2 - Model 3582-3X -Hydrometer Controller

This 4-channel system can be used in either a “Master-and-Remotes” configuration for high water flooding, fog, high wind and snow/ice detection systems for roadway and public access areas as well as for dam and hydro-related pump stations. It can also be applied as a remotely controlled station to activate remote solar-powered cameras, pumps or public warning devices such as beacons, message signs, gates and sirens controlled directly by remote commands initiated by OneRain Contrail® software (Contrail Base Station and Contrail Server).

There are typically one or more command Controllers at a high-water stream crossing: one at the Master gauging station and the others at the Remote solar-powered flashing beacon stations. The Master stations support up to three water level sensors and may have a rain gauge or other weather sensors for monitoring atmospheric conditions. The Master station sends timed reports, event-generated reports, and command-generated status reports. These reports can either pass through an optional Repeater or are received directly at the central site Base Station. The Remote stations have a controlled device (e.g., a warning sign with flashing beacons) and will send timed reports and command generated response reports to its Master controller and the Base Station. Remote stations can also be equipped with optional Barrier Gates.

• ALERT2 two-way command and control capability
• Multiple applications and uses: flooded roadway warning systems, solar-powered cameras, hydro-related pump stations, automatic barrier gates, electronic message signs, siren warning systems
• Configurable as either a Master, Gauging Station or Remote Warning Site
• Received Signal Strength Indicator (RSSI) Test-Point

• Radio Frequency Range: VHF 135 to 174 MHz; UHF 406 to 470 MHz (up to 8 independent TX/RX pre-programmed frequencies, switch selectable)
• Data Format: ALERT2
• Transmit: HSE 3512 API Commands over Ethernet
• Output Power: 5 Watt (switch selectable), PTT test switch provided
• Squelch: Open -112 dBm, Close -114 dBm
• Speaker: Monitors Rx Channel
• Audio Output for SINAD: 1/8 inch Phone Jack
• Antenna Connector (VHF): N-Type (F)
• Antenna Connector (VHF): SMA (F)
• Voltage: 12 to 15 VDC
• Current: < 160 mA standby + current requirements of the warning lights
• (750 mA)
• Dimensions: 12 x 14 x 5.5 in (30.5 x 35.6 x 14 cm)
• Shipping weight: 9 lbs (4.1 kg)
