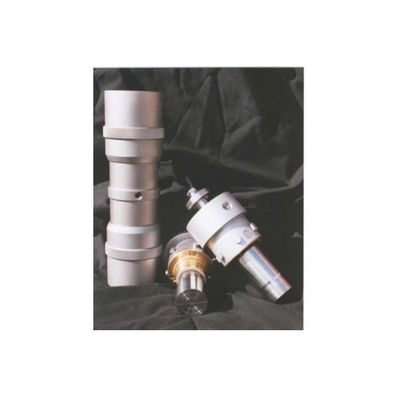

Stratum Reservoir - Model RES-1100 -Hydrostatic/BI-axial Core Holder
Quick-load light weight hydrostatic/BI-axial core holder, Ø1.0” diameter samples.
Most popular related searches
- Light weight Aluminum core holder for multi-purpose measurements in the laboratory such as porosity and permeability, where high through put is required.
- One of the axial end-stems has a piston cylinder that can operate the end-stem at different- or same pressure as the radial sleeve pressure.
- End-stems are electrical insulated to allow electrical properties, such as FRF versus pressure and Resistivity Index at elevated pressures and temperature.
- Core holder can be configured with multiple inlets/outlets
- Working Pressure: 200 bar (2,900 psi) @ room temp.
- Test Pressure: 300 bar (4,350 psi) @ Room temp.
- Working temperature: Ambient to+65 °C
- Length without valves: 260mm (L=0-70mm samples)
- Weight without valves: 1.7 KG (L=0-70mm samples)
- Material non-wetted part : Aluminum
- Material wetted parts: SS-316L
- Insulation material: Annealed PEEK/POM
- Confining Valve: Autoclave
- Process Valves: Swagelo`: "»r similar
- O-ring materials: Viton-7;- Vton-90orKalrez
- Core Sleeve Materials: FKM (Viton-75, std.) or Nitrile
- Core Sleeve Dims. 1.0": I.D. 24mm x 2,0mm wall (std.)
- Type of sample mounting: Direct vacuum expansion of sleeve
