Hansa-Tmp - Hydrostatic Fan Drive System
FromHansa-TMP Group
Integrated solution for the Fan Drive system: a closed circuit pump with a specific control designed for the operation of cooling fans combined with a piston motor for the rotation of the fan.
Most popular related searches
axial piston pump
pressure reducing valve
flushing valve
pressure reducer
piston pump
pressure filter
hydrostatic drive
axial pump
pump controller
The HANSA-TMP fan drive system can be offered in different versions:
- STD: Standard
- SL: Speed limiter
- RF: Reverse flow
- TOP Version: SL + RF

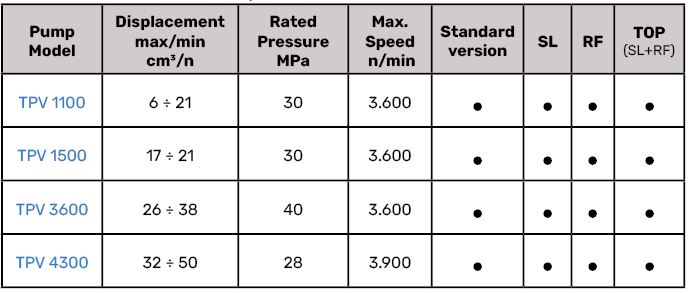

Displacement: da 6 a 50 cm3/n
Characteristics
- A complete kit of components for an integration solution:
- Closed circuit axial pistons pump –TPV Series: available models 1100, 1500, 3600 and 4300
- Pressure reducing valve for displacement control
- Anti-shock and anti-cavitation valves
- Flushing valve
- Fan Drive fixed displacement hydraulic motor. A gear motor is available.
Options
- Pilot pressure filter
- Speed-Limiter valve
- Reversing valve
