LMK 387 - Model LMK 387 - Hydrostatic ...

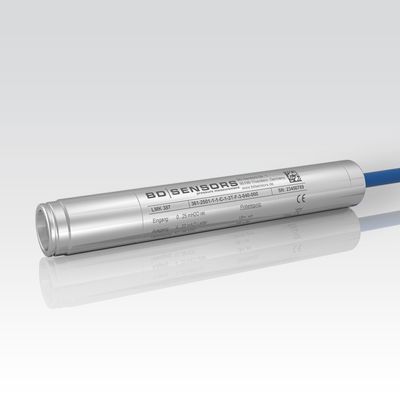

LMK 387 - Model LMK 387 -Hydrostatic Level Probe LMK 387

The stainless steel probe LMK 387 was developed for level and gauge measurement in wastewater, sludge or water courses. The mechanical robustness of the front-flush ceramic diaphragm faciliates an easy disassembly and cleaning of the probe in case of service.
Compared to the level probe LMK 382 the outside-diameter is only 22 mm, which allows an easy installation and backfitting in 1" tubes or in cramped fitting conditions. An IS-version is also available.
Features:
- nominal pressure: from 0 ... 4 mH2O up to 0 ... 100 mH2O
- accuracy: 0.35 % (opt. 0.25 %) FSO
- diameter 22 mm
- diaphragm ceramics 99.9% Al2O3 (on request)
- highly appropriated for wastewater, sludge and viscous media
Optional Features:
- IS-version
- housing material titanium
- drinking water certificate according to DVGW and KTW
- temperature element Pt 100
- mounting with stainless steel tube
- different kinds of cables and elastomers
