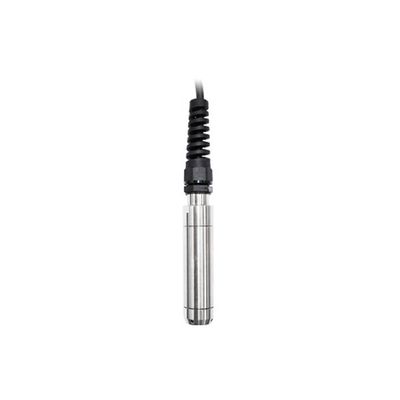

Aquas - Model SMR02 Series -Hydrostatic Level Transmitter
Hydrostatic Level Transmitter is connected directly via RS485 communication interface, providing simple, reliable, cost- saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. Hydrostatic Level Meter in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, the Hydrostatic Level Transmitter is ideally used in water/wastewater industry.
- Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
- On-line Realtime Measurement
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- Temperature Compensation
- No Vent Tube to Avoid the Humidity to Damage the Sensor
- 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
- Software Configuration Calibration and Data Monitoring
- Standard Modbus RTU Protocol, Direct Connected with PLC,HMI, Eliminate I/O Module Cost
- Operation Temperature up to 125°C
- Up to ± 0.05% High Accuracy
- OOptional Protective Vent Membrane to Equalize Pressure and Prevent Humidity to Enter the Enclosure
- Onboard memory allowing users to easily calibrate and configure sensor at lab and distribute to various fields sites
- Measurement range :
- SMR02-1: 0~10 m
- SMR02-2: 0~50 m
- SMR02-3: 0~100 m
- SMR02-4: 0~3 m
- Accuracy : ± 0.1% FS; ±0.05% FS (optional)
- Resolution : 0.001% FS
- Repeatability : ±0.025% FS
- Stability (annual) : 0.1% FS
- Overload : 3 X measurement range
- Burst : >4 X measurement range
- Operating temperature : -40 ~ 85 °C
- Response time : 1 sec
- Temperature Sensor : Pt1000
- Temperature measurement range : -40 ~ 85 °C
- Temperature accuracy : ±0.5 °C; ±0.1 °C (optional)
- Protection : IP68, up to 600 m depth of water
- Housing sensor : SS316L; Titanium
- Dimension : Φ22Χ 170 mm
- Weight : transmitter : approx. 200 g (SS316L); 160 g (Titanium)
- cable: 80 g/m
- Output Signal: RS485 (Modbus RTU protocol), 19,200 bps, 8 data bits, no parity, 1 stop bit; 4~20 mA (optional)
- Data Resolution: 16 bits (0.001% FS)
- Surge Protection: 4000 V DC
- Power: 3.6~12 V DC ±10%, 5 mA
- Protection: polarity, overload, short circuit
- Safety: CE, FCC
- Drinking water, stormwater groundwater, industry, water treatment, wastewater, gas petrochemical
The transmitter is with a small profile, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing in a 1/4-18 NPT threaded fittings. The package utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and off set correction.
