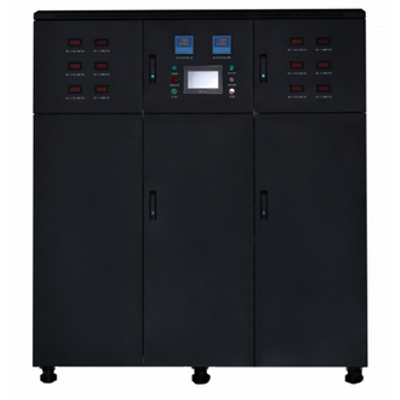

Geemblue - Model GBA-800L-HCLO -Hypochlorous Acid Generator

Principle of electrolysis

Hypochlorous acid generator electrolyzes 0.3% of NaCl solution in a special electrolytic module. In the advanced anion membrane, the acid oxidation potential water is generated from the anode side and the alkaline reduction potential is generated from the cathode side. Most of the alkaline water will enter the anode chamber twice, and after the second electrolysis, the slightly acidic electrolytic ion water will be generated from the anode side. A small amount of alkaline water will be generated from cathode side.

Technical principle

Anolyte from anode

The slightly acidic water (HOCl) produced from anode side with high redox potential and excellent germicidal ability, and it contains no chemical additives. The slightly acidic electrolyzed water is a solution with high safety, no residue and environmentally friendly.

Catholyte from cathode

The main component of catholyte is sodium hydroxide (NaOH) with 10~12 PH, -800~900mv ORP, which can effectively clean and disinfect the general surface, activate crop growth, or as a coagulation or flocculant (handling mild heavy metal pollution, or ingesting oily ingredients in the isolation solution, etc.), even replacing iodine to clean the wound, or properly adjust pH of liquid, etc.

• Capacity: 800L/h at 500ppm  or  1600L/h at 250ppm
• Ph range: 3~8
• Orp: 800~1100mV
• Additives: Softened salt
• Salt consumption: 5g per liter HOCl
• Water Consumption: 1.35L per liter HOCl P

Integrated compact design, Small footprint
The system use membrane electrolyzed functional technology, combines of electromagneticdevice. electrolytic activation tank, control electrical appliances, water dispenser, electrical elements etc in a small cabinet.

Multiple protection
Automatic projection function for any abnormal situation such as over heat, lack of water, over current, dissolving error, PH value exceed etc:
CE certified components to ensure a reliable, low cost and high efficiency system;

Long Service life
The system use titanium electrode coated by platinum and iridium for protection from oxidation, largely increase the service life of electrode and the whole equipment: Auto/ Manual pole reverse self-cleaning function on electrolytic cell, effectively remove the scaling and increase the service life;

Full Automatic Operation
PLC take over every process and displace on touch screen for reference; Auto salt dissolving system save a lot of work with accurate process; On-line displace PH level, ORP, conductivity, electrolytic current and running time etc
