Gizmo Engineering - Model ILP-PP -IBC Tank Low Level Alarm

• Always on duty because the liquid tube is permanently attached to the alarm unit.
• It can go anywhere because its battery powered. No need for power outlets.
• Uninterruptible battery power lasts for years. Lithium battery included.
• Loud warbling tone cuts through the loudest industrial noise.
• Rugged. Built for rough, wet and corrosive environments.
• Protects your pumps from debris with an intake screen.
• Flow indicator built into low level units.
• Safe. 9 volt circuit in a waterproof enclosure.
• No wetted metal parts.

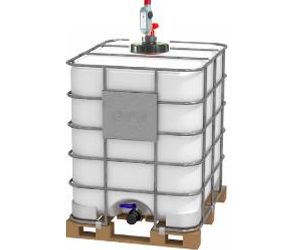

IBC TOTE TANK ALARM for low liquid level makes sure your process will never run out of chemicals. When liquid level is low, an IBC Alarm emits a very loud 103dB beeping sound, and flashing LED.

Uninterruptible battery power works through power failures, can`t come unplugged, or be defeated. And, because the Drum Alarms don`t use any power until alarming, the batteries last for years.

Float switch is protected inside a pipe. The float is immune to abuse from getting knocked around during transfer between containers. Year of reliable service.

Adjustable depth to fit any size tote tank. Simply loosen the set screws to slide pipes to correct depth up to 50 inches. (this is slightly deeper than a standard 330 gallons Mauser IBC tank which is 48.5")

The the feed tube is permanently attached to the float switch, so the level alarm is always on duty.

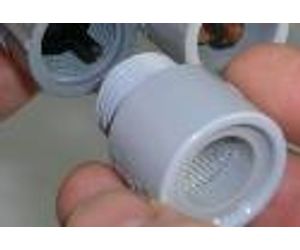

Removable filter screen on the suction pipe guards your pumps from debris or crystals. A replaceable check valve can be easily inserted in-line to prevent liquid from draining when transferring to new containers if needed.

Different materials for different chemistries: polypropylene is standard and PVDF and stainless steel by request.

Polypropylene models have polypropylene floats, and polypropyelene piping so all wetted parts are polypropylene except the Acrylic flow indicator and glass ball. If Acrylic is incompatible there are models available without the flow indicator.

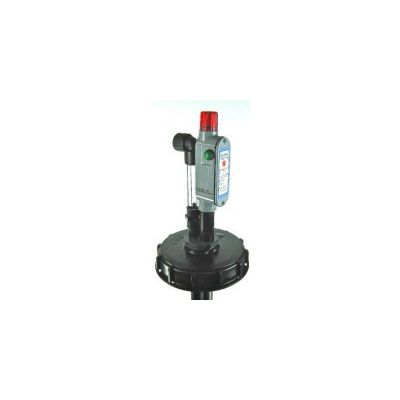

ILP-PP - polypropylene wetted parts with liquid suction pipe and acrylic flowmeter. Includes 6 inch buttress thread lid.

ILPX-PP - same as above but no flow indicator

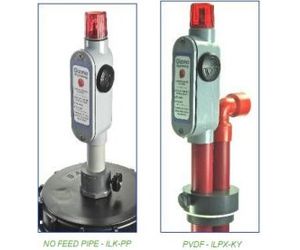

ILK-PP - no liquid suction pipe. (level alarm part only)

PVDF (Kynar) models have the suffix KY instead of PP.

Other options below can be added on but don`t change the base model number.
