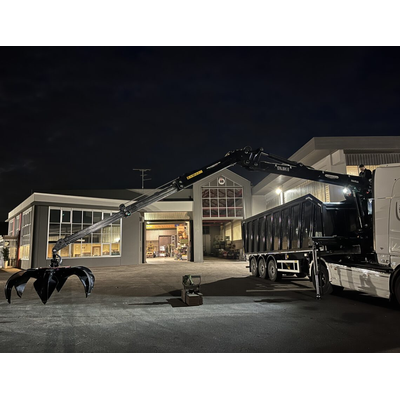

Icarbazzoli - Model IB 170.L104 -Loader for Chipper Truck

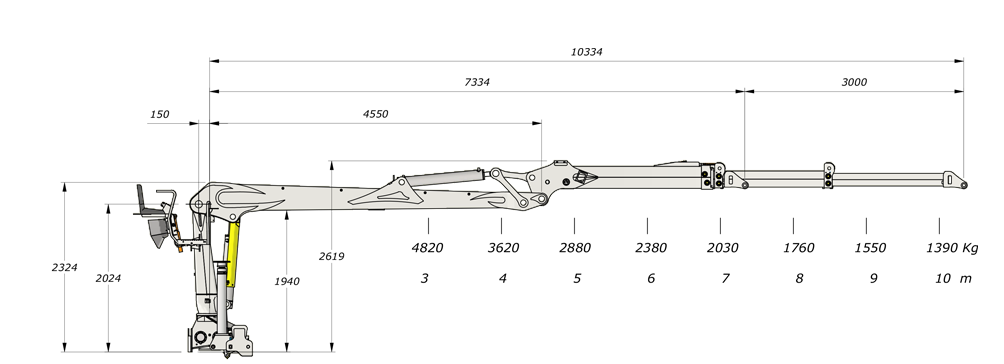

Net load moment: 145 KNm. Rotational torque (net): 32 KNm. Rotation angle: 425°. Maximum reach: 10.4 m. Operating pressure: 240 Bar. Recommended pump flow rate: 1x90 Lt/min, 2x80 Lt/min, LS 1x150 Lt/min. Loader weight (excluding terminal equipment): 2600 kg.
