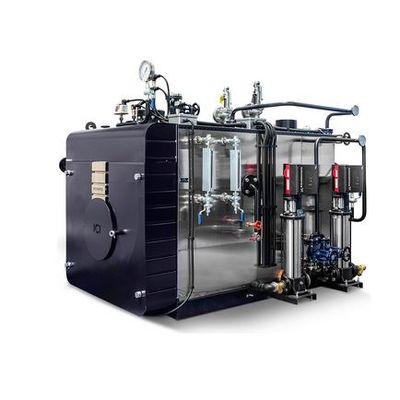

ICI-Caldaie - Model ECS24 -Ecovapor

• Accessories on the steam side, including:
• Steam outlet globe valve
• spring safety valve (no.2 standard valves only for Ecovapor 2500 model)
• level indicator with direct reflection
• shut-off valve groups and drain indicator
• Integrated economiser consisting of:
• 2 check thermometers
• 1 pressure gauge with three-way test valve
• safety valve
• Water delivery unit mounted on boiler support containing:
• 1 vertical multi-stage centrifugal pump suitable for 120° C water with integrated inverter
• 1 shut-off globe valve
• 1 pump suction filter
• 2 non-return valves
• Adjustment and control system allowing:
• Water level adjustment which depends on the actual steam request from the system
• Thermal power adjustment which depends on the actual steam request from the system
• Burner modulation adjustment, for the management of any power between the minimum and maximum limits, for an optimal adaptation to the feed instant request
• Adjustment of frequency and duration of automatic blowdown
• Dynamic programming of the boiler operating pressure set-point
• Pressure monitoring instrumentation manifold, consisting of:
• large dial 3 way test valve manometer
• fail safe manual reset safety pressure switch
• analogue pressure transducer
• Temperature monitoring
• ambient temperature
• flue gas temperature
• Automatic conductivity probe level regulator, consisting of:
• capacitive probe for level control and management
• 1st alarm and burner shut off probe for low level with self-checking
• 2nd alarm and burner shut off probe for low level with self-checking
• high level safety probe
• Connectivity and data logging
• ECOVAPOR management system is certified to manage safety chains, has an expandable control system and has a connectivity system via LAN, WiFi, Modbus, Modem. It is fully equipped with a SIM for the transmission of data.
• This allows the following benefits:
• Register the product in the machine database to facilitate remote service operations.
• Recording of start-up and maintenance operations.
• Connection between the boiler and the other management and control systems.
• Free update of the boiler control software.
• Collection of data on the operating state through external and internal sensors of the plant room and boiler.
• Self-checking and alarm status indications.

• Design pressure: 12 bar
• Heat output: 238 ÷ 2044 kW
• Steam capacity: 350 ÷ 3000 kg/h
• Efficiency: > 94,0 %
• NOx emissions: <70 mg/kWh

Versions with NOx emissions <30 mg/kWh available on request
