ICI Caldaie S.p.A products

Integrated system for steam production: ECOVAPOR ECS24 consists of a series of equipment, assembled and electrically and hydraulically tested at our facility, aimed at ensuring the operation without a continuous supervision by a qualified operator for 24 hours.

Integrated system for steam production: ECOVAPOR ECS72 consists of a series of equipment, assembled and electrically and hydraulically tested at our facility, aimed at ensuring the operation without a continuous supervision by a qualified operator for 72 hours.

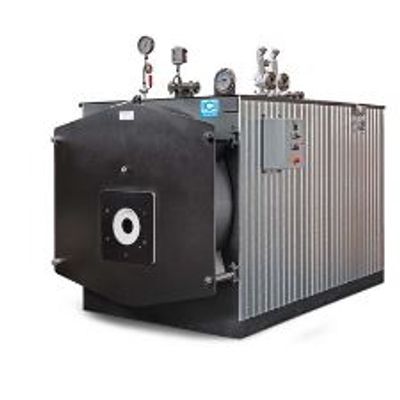

Monobloc reverse flame wet back fire tube superheated water boilers. Manufactured from steel, quality tested according to the prevailing standards and welded with automatic submerged arc welding processes. Suitable for liquid and gaseous fuels. Complete with regulation and safety accessories for automatic operation.

BAX is a condensing heat recovery unit built from AISI 316 Ti stainless steel that must be located after the flue gas exit output of boilers running only on natural gas or LPG. The flue gases passing through the recovery unit undergo a considerable reduction in temperature, and, if the system return temperature is below 57°C, the water contained in the gas condenses by exploiting the latent heat of condensation. The recovery unit must be hydraulically connected in series to matching boiler; the increase in water temperature is only a few degrees centigrade and it is therefore necessary to verify the minimum working temperature allowed by the boiler.

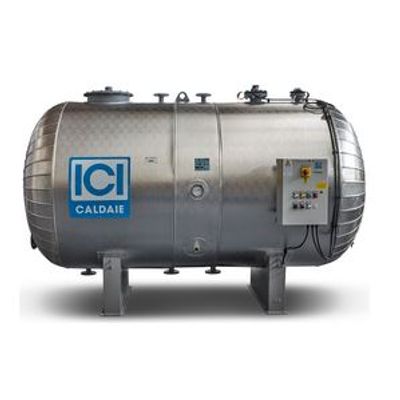

The condensate collection tank (VRC) has been designed to collect condensate returning from the steam system team and to mix it with the make-up softened or demineralised water.

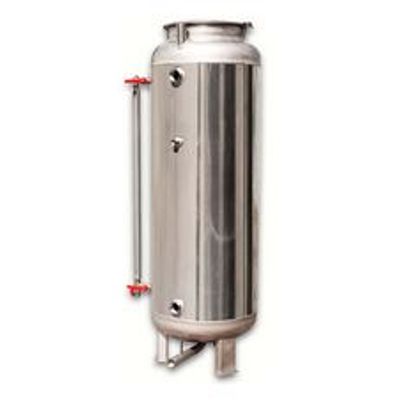

The DEG deaerators are devices at atmospheric pressure designed for the thermophysical degassing of the steam boiler feed water. The degassing process is performed by means of a controlled steam injection inside the storage tank in order to increase the internal water temperature. This appliance is part of the condition provided by the Art. 3 Par. 3 of the PED Directive 2014/68 / EU.
