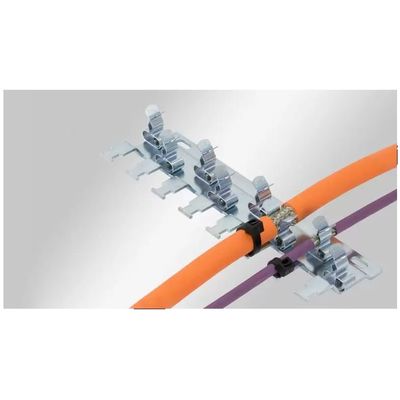

icotek - EMC Clamp Assembly for Screw Assembly
EMC clamp assembly for screw assembly with or without integrated strain relief. EMC clamp assemblies are used, where the shield of several cables must be connected to the earth potential. They are easy to use and enable effective earthing and strain relief of up to 12 cables in a small space. There are different carriers available which can be user configured with up to 12 SKL or MSKL shield clamps. The shield clamps are mounted directly on the surface of the clamp assembly which guarantees a tight fit.
When using types with integrated strain relief cables can be fixed via the cable jacket using cable ties. Thus strain relief in accordance with EN 62444 is achieved.
The EMC shield clamps as listed below are available to mount:
SKL 1.5-3 | SKL 3-6 | SKL 6-8 | SKL 8-11 | MSKL 3-12
The SKL shield clamps are assembled in a row, the MSKL shield clamps are assembled in a staggered double-row which enables an ideal and space-saving arrangement.
The clamp assembly is easily attached to mounting plates via screw.
Configure your individual clamp assembly with the icotek EMC Configurator!
- Large contact area
- Shield contact and strain relief separated
- Easy assembly and removal
- The spring design requires no adjustments and will permanently maintain contact to the cable shield
- Shock and vibration resistant, maintenance free
- Designed for high density applications
- Possibility to configure custom specific EMC clamp assemblies
- Material: Shield clamp: Spring steel, zinc plated
- Snap foot: Spring steel
- Mounting foot: Mild steel, galvanically zinc plated
- Properties: vibration proof
- Mounting options: Screw type mounting
