Fumex AB

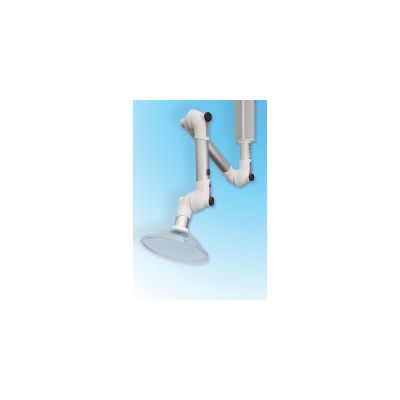

Fumex - Model ME Series -Ideal Fume Extractor for Laboratory Environments
FromFumex AB
The unique joint design of the Fumex ME results in a very low pressure drop, which produces many valuable benefits; Energy-saving. Lower noise levels. Less risk of disruptive ventilation noise. Low pressure drop without having to use a larger dimension system. Easy to combine with other extractors in the same ventilation system. As standard, the weight of the extractor is supported by an internal helical spring in the first joint of the arm. For 2 m arms, a tension gas spring is recommended for better stability and flexibility.
Most popular related searches
fume extractor
laboratory fume extractor
local fume extractor
laboratory extractor
static electricity
laboratory fume
explosive environment
noise risk
Available in tube diameter Ø75 mm, with various constructions for ceiling, wall and bench installations.
- Standard
- For use in most laboratory environments
- Joints made from polypropylene and tubes from anodised aluminium
- PP
- For environments containing high concentrations of corrosive pollutants
- Joints and tubes made from polypropylene
- ATEX
- For explosive environments
- Complies with the ATEX directive 94/9/EC
- Joints and tubes made from conductive polypropylene
- ESD
- For environments where there is a risk of sparks from static electricity in the electronics industry
- Certified in accordance with EN 61340-5-1
- Joints and tubes made from conductive polypropylene
- Suction nozzle, metal hood, dome hood, shovel hood, flat screen hood
- Ceiling mountings in eight standard lengths, wall brackets, flexible bench mounting
